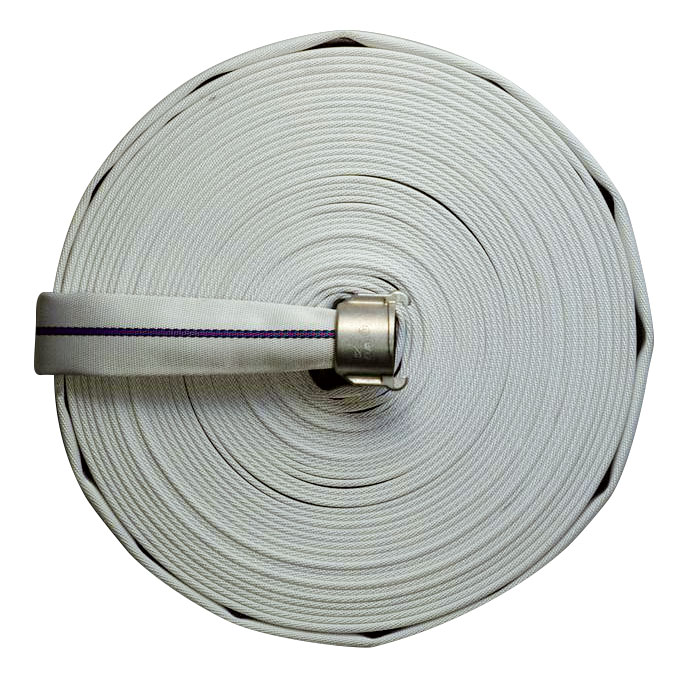

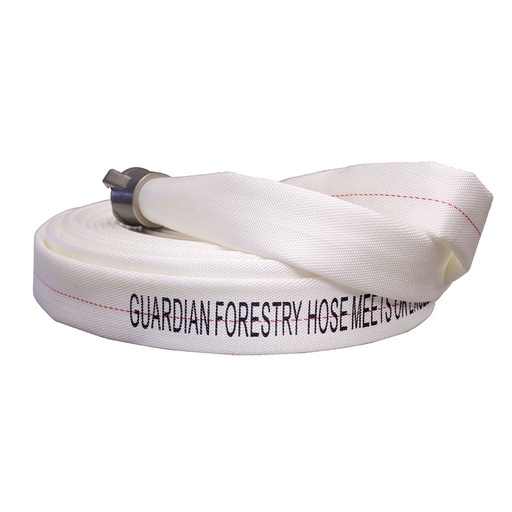

An all synthetic, tough, ULC approved, non-percolating forestry hose,
perfect for handling fire fighting, tank fill or high volume feeder
lines.
Tough in ready for action but light in weight
Patented
Mertex® lining process produces an amazingly thin but smooth inner
waterway, yielding an extremely low friction loss for maximum flow
Available with Permatek™ HP treatment in a variety of colours, for even greater visibility and abrasion resistance
Resistant to most chemicals, petrol products, ozone and UV exposure, hydrolysis, rot and mildew
Will remain flexible to -55°C (-65°F)
Couplings:
Threaded: Anozided Aluminum
QC: Forged Aluminum Merlug
Meets
or exceeds all performance requirements of NFPA 1961, Underwriter's
Laboratories of Canada Spec S518.1, Factory Mutual, and USDA Spec
5100-187 for 1" (25mm) and 1.5" (38mm)
Additional options upon request:
Available in other sizes (44mm and 65mm) and lengths
Available in other colors: Beige, Forest green, Orange, Red, Blue, Green, Yellow, Purple
ULC labeling must be requested is needed on the hose
Other stenciling requests
Hose Size
Service Pressure
Proof Pressure
Burst Pressure
Coil Dia./100'
Weight/100' Uncpld
1" (25mm)
300 psi
600 psi
1,000 psi
14" (36cm)
8lbs. (3.6kg)
1.5" (38mm)
300 psi
600 psi
1,000 psi
14" (36cm)
12lbs. (5.4kg)
1.75" (44mm)
300 psi
600 psi
1,000 psi
15" (38cm)
13.5lbs. (6.1kg)
2.5" (65mm)
300 psi
600 psi
1,000 psi
16" (42cm)
22lbs. (10kg)
Hose Configuration
25mm (1") QC x 50ft or
25mm (1") QC x 100ft or
25mm (1") NPSH x 50ft or
25mm (1") NPSH x 100ft or
25mm (1") NHT x 50ft or
25mm (1") NHT x 100ft or
38mm (1.5") QC x 25ft or
38mm (1.5") QC x 50ft or
38mm (1.5") QC x 100ft or
38mm (1.5") NPSH x 25ft or
38mm (1.5") NPSH x 50ft or
38mm (1.5") NPSH x 100ft or
44mm (1.75") NPSH x 100ft or
65mm (2.5") BAT x 25ft or
65mm (2.5") BAT x 50ft or
65mm (2.5") BAT x 100ft or
65mm (2.5") QC x 50ft
