Wildland Series Quadpod Sprinklers
The Wildland Ember Quadpod Sprinkler and the Spark Quadpod Sprinklers are a smaller version of the Blaze water cannon/sprinkler that can supply large spray with a radius of 360° or set to a partial arc. These mobile water cannon can be connected to other Quadpod Sprinklers to help create or expand a firebreak. It is well-suited for emergency response, municipal works, mills, and resorts. Please refer to the chart below to determine size of pump and water supply needed. Spark is designed for compact storage in trucks and trailers and can quickly be put into operation.
Specifications

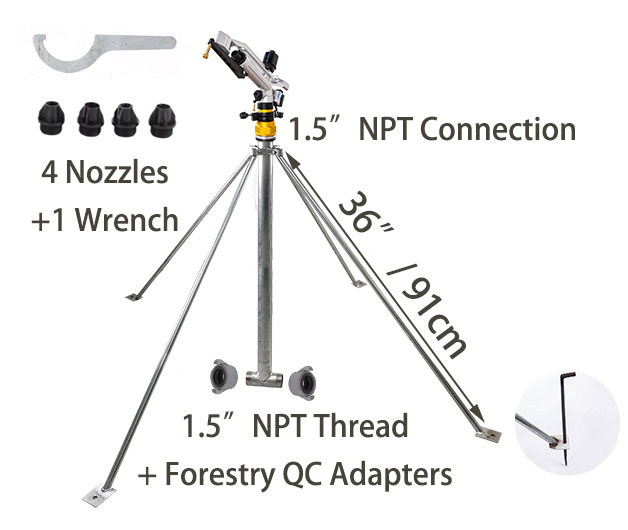

EMBER
- 36" legs
- 5 nozzle sizes
- 38mm (1.5") piping/medium flows - Inlet 1.5" with 38mm wildland QC - comes with 2-QC & 1-Cap
- Pressure range 0.15-0.4Mpa (21.3-56.9psi)

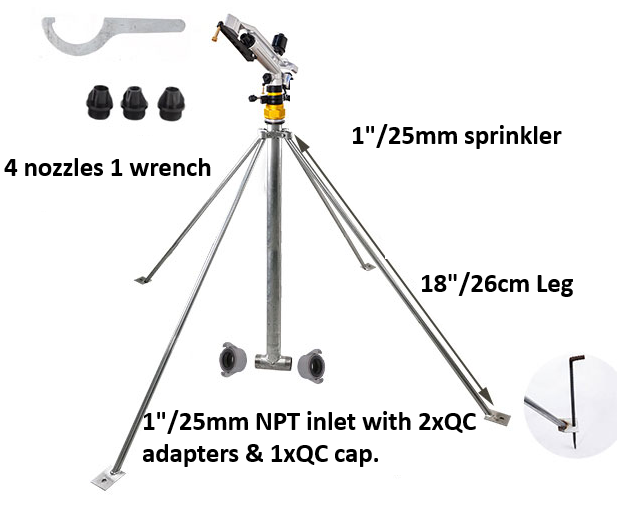

SPARK
- 18" legs
- 4 nozzle sizes
- 25mm (1") piping/smaller flows - Inlet 1" w/38mm wildland QC - comes with 2-QC & 1-Cap
- Pressure range 0.15-0.4Mpa (21.3-56.9kpsi)
Flow Charts
See flow chart below for flows and recommended pressures.
The Spark Quadpod is designed for compact storage and quick setup. Lower flows than the Blaze & Ember.
The Ember Quadpod is designed to be a little brother to the Blaze, with a simpler sprinkler head. It is shorter with a similar flow rate to the Blaze but is more compact.
Alternative Products

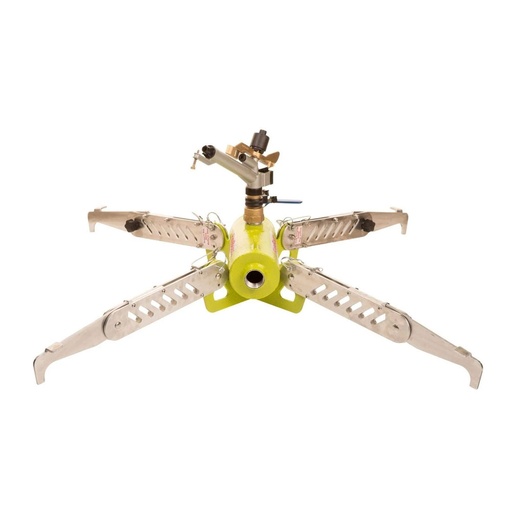

![[P-9057] FireBozz Mini Sprinkler - Mobile Water System](https://cdn.wfrfire.com/web/image/product.template/9057/image_512/%5BP-9057%5D%20FireBozz%20Mini%20Sprinkler%20-%20Mobile%20Water%20System?unique=9702dfd)

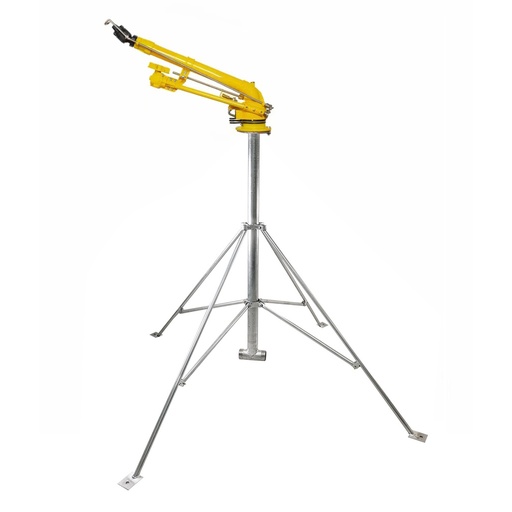

![[P-9648] Wildland Blaze Big Gun Quadpod Sprinkler](https://cdn.wfrfire.com/web/image/product.template/9648/image_512/%5BP-9648%5D%20Wildland%20Blaze%20Big%20Gun%20Quadpod%20Sprinkler?unique=9702dfd)
