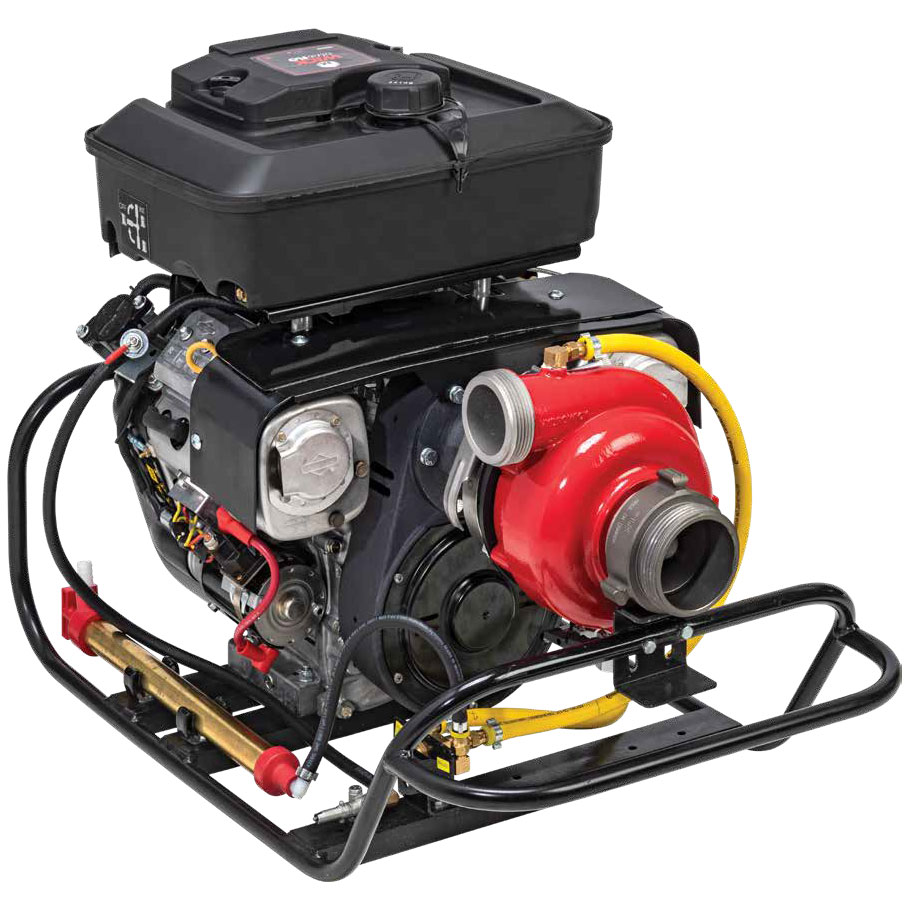

INTRODUCING THE NEW WICK ULTRAFLO™
High power combination volume/pressure attack pump ideal for urban interface & wildland applications.
Featuring Mercedes Textile's all-new
innovative 2-stage pump end, it delivers 2x more volume at higher
pressures. Powered by a Briggs & Stratton Vanguard (18HP or 23HP),
the WICK UltraFlo™ is available in portable or vehicle-mounted
configurations. Engineered with our exclusive loss of prime protection,
electric start and maintenance-free speed increaser to provide proven
and powerful performance.
Features
-
Quick-release stainless steel clamp for easy maintenance
- Foam-compatible pump end, interchangeable with our standard W2, W3 and W4 pump ends
- Standard 18HP 4-stroke Briggs & Stratton Vanguard “V Twin” air-cooled engine. Also available in 23HP
- Electric start with manual recoil backup (battery optional)
- Maintenance-free speed increaser
- Hand-priming pump & pressure gauge included
- Standard 3" (76mm) NPSH inlet with NH adaptor on intake unless specified.
- Discharge is 2.5" (65mm) NPSH unless specified.
- Integral fuel tank and remote fuel connection
Applications
- Simultaneous attack lines
- High volume attack lines
- Structure Protection
- Tandem pumping
- Parallel pumping
- Remote water transfer
- Vehicle Applications:
- Brush trucks
- Boat fire pumps
- Slip-on units
Specifications
- 32.5"l x 19.5"w x 24"h (82.5cm x 50cm x 61cm)
- 23HP: 163lbs. (74kg)
- 18HP: 160lbs. (72.6kg)
- Suction: 3" (76mm) NH
- Discharge: 2.5" (65mm) NPSH
- Engine
- Briggs and Stratton Vanguard™
"V Twin" air cooled engine with over-speed protection
- 4 Stroke
- 23hp @ 3,600 rpm
- Electric ignition
-
Cartridge-type spin-on oil filter

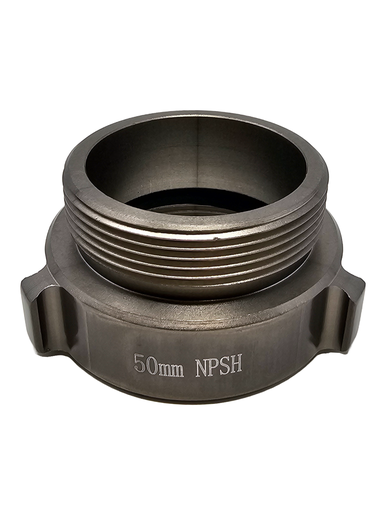

![[V-27423] Thread Protector for Fire Pumps (50mm (2") NPSH)](https://cdn.wfrfire.com/web/image/product.product/27423/image_512/%5BV-27423%5D%20Thread%20Protector%20for%20Fire%20Pumps%20%2850mm%20%282%22%29%20NPSH%29?unique=ee6d1f3)
