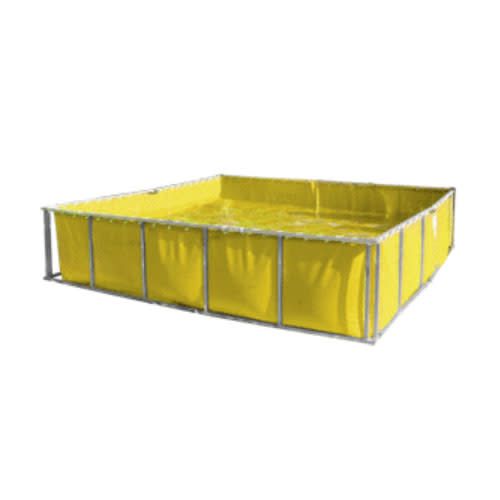

Lightweight, durable, and built for rapid deployment, the Aluminum Single Fold Framed Port-a-Tank is the ideal solution for portable water storage in emergency response, fire suppression, and remote site operations. Designed with a sturdy aluminum frame and a single fold mechanism, this tank offers quick setup and compact storage without compromising strength or capacity.
Frame
- Superior heavy duty laser cut hinge design
- 20-25% weight savings over steel
- Aluminum mig welded construction
- Will not rust
- Pinch free frame- no more pinching of your hands or fingers in the folding areas of the tank
Liner Description
- Materials: heavy duty vinyl, NSF-61 approved (potable water)
- Chemical & fuel resistant
- Continuous 22oz. vinyl
- Heavy duty floor increases durability of the liner (patent pending)
- "Easy Lift Handles" mounted on the floor of the tanks (patented)
- Yellow or Red Liner - *specify when ordering*
- #4 solid brass grommets
- All hems are double stitched and triple reinforced
- 10" drain tube with quick release for fast draining or mating with another tank (2 drain tubes are standard on 2500+ tanks)

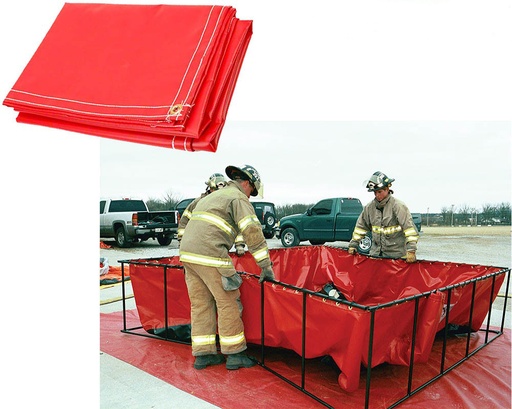

- Ground cover and top covers available
- Optional
clear view panel liner includes a 12" wide heavy-duty, reinforced clear
vinyl panel that allows you to easily view water level from any angle
| Capacity | Open Dimension | Folded Dimensions | Weight |
| 500 gallon | 5'8" x 5'8" x 29" | 7" x 5'8" x 29" | 68 lbs. |
| 1000 gallon | 8'3" x 8'3" x 29" | 7" x 8'3" x 29" | 96 lbs. |
| 1500 gallon | 10'3" x 10'3" x 29" | 7" x 10'3" x 29" | 109 lbs. |
| 2100 gallon | 11'3" x 11'3" x 29" | 7" x 11'3" x 29" | 124 lbs. |
| 2500 gallon | 12'3" x 12'3" x 29" | 7" x 12'3" x 29" | 135 lbs. |
| 3000 gallon | 13'3" x 13'3" x 29" | 7" x 13'3" x 29" | 149 lbs. |
| 3500 gallon | 14'3" x 14'3" x 29" | 7" x 14'3" x 29" | 167 lbs. |
| 4000 gallon | 14'3" x 14'3" x 29" | 7" x 14'3" x 29" | 178 lbs. |
