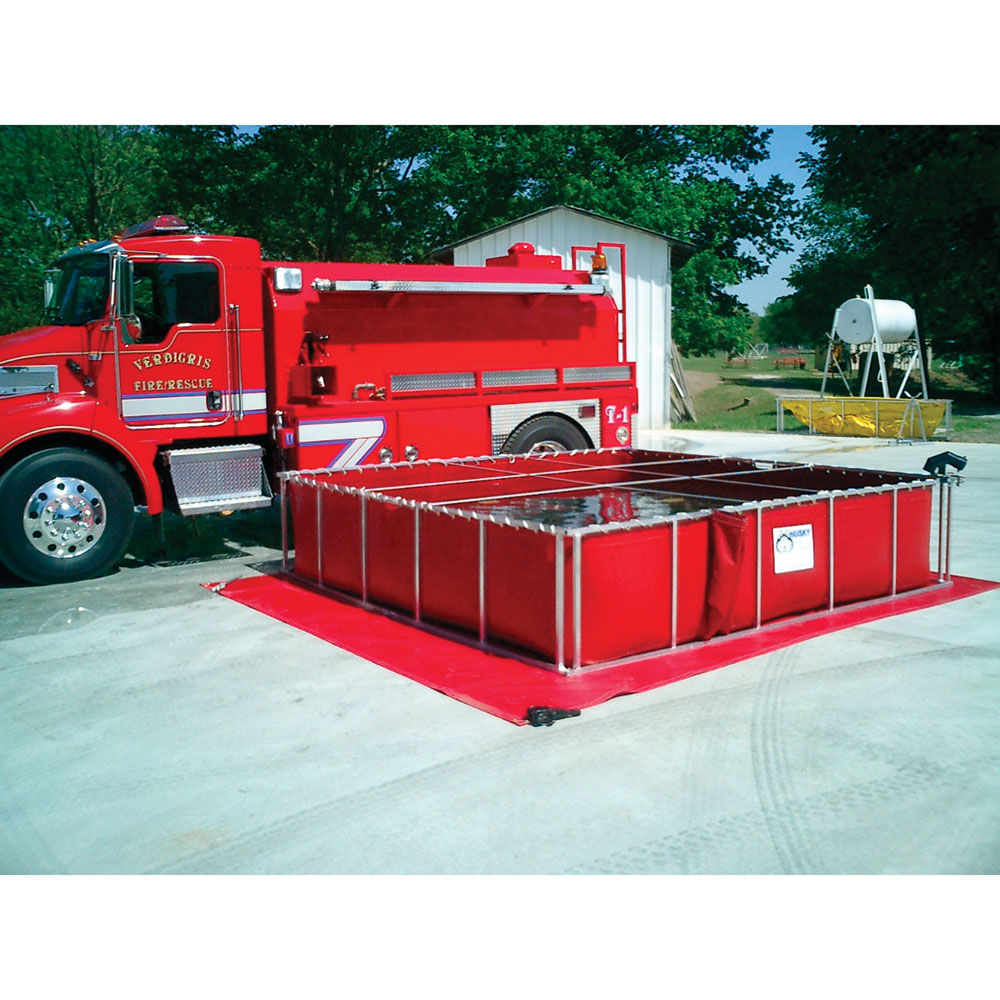

Double Folding Frame Water Tanks are for the end user that has
limited storage space. These unique frame tanks have a second folding
point on the long side of the frame allowing you to fold the frame tank
one more time cutting the overall length in half. Just pull the special
heavy duty pins from the laser cut hinges and fold your tank again. The
pins are secured to the frame to assure they will not be lost!
Can be locked only in the first folding point to fit your existing tank holder.
Frame
1" x 1" x 1/8" 6061 square tube aluminum
Superior heavy duty laser cut hinge design
20-25% weight savings over steel
Will not rust
Pinch free frame- no more pinching of your hands or fingers in the folding areas of the tank
Liner Description
Materials: heavy duty vinyl, NSF-61 approved (potable water)
Chemical & fuel resistant
Continuous 22oz. vinyl
Heavy duty floor increases durability of the liner (patent pending)
"Easy Lift Handles" mounted on the floor of the tanks (patented)
Yellow or red (specify when ordering)
#4 solid brass grommets
All hems are double stitched and triple reinforced
10" drain tube with quick release for fast draining or mating with another tank (2 drain tubes are standard on 2500+ tanks)

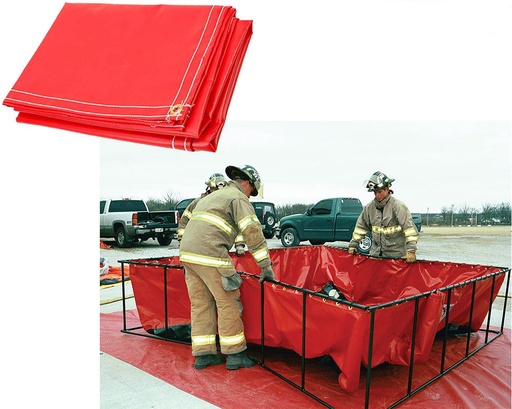

Ground cover and top covers available
Optional
clear view panel liner includes a 12" wide heavy-duty, reinforced clear
vinyl panel that allows you to easily view water level from any angle
Capacity
Open Dimensions
Folded Dimensions
Weight
500 gallon
5'8" x 5'8" x 29"
16" x 2'11" x 29"
68 lbs.
1000 gallon
8'3" x 8'3" x 29"
16" x 4'3" x 29"
96 lbs.
1500 gallon
10'3" x 10'3" x 29"
16" x 5'3" x 29"
109 lbs.
2100 gallon
11'3" x 11'3" x 29"
16" x 5'9" x 29"
124 lbs.
2500 gallon
12'3" x 12'3" x 29"
16" x 6'3" x 29"
135 lbs.
3000 gallon
13'3" x 13'3" x 29"
16" x 6'9" x 29"
149 lbs.
3500 gallon
14'3" x 14'3" x 29"
16" x 7'3" x 29"
167 lbs.
4000 gallon
15'3" x 15'3" x 29"
16" x 7'9" x 29"
178 lbs.
5000 gallon
17'3" x 17'3" x 29"
16" x 8'9" x 29"
215 lbs.
Product Size
500 US gal or
1000 US gal or
1500 US gal or
2100 US gal or
2500 US gal or
3000 US gal or
3500 US gal or
4000 US gal or
5000 US gal
