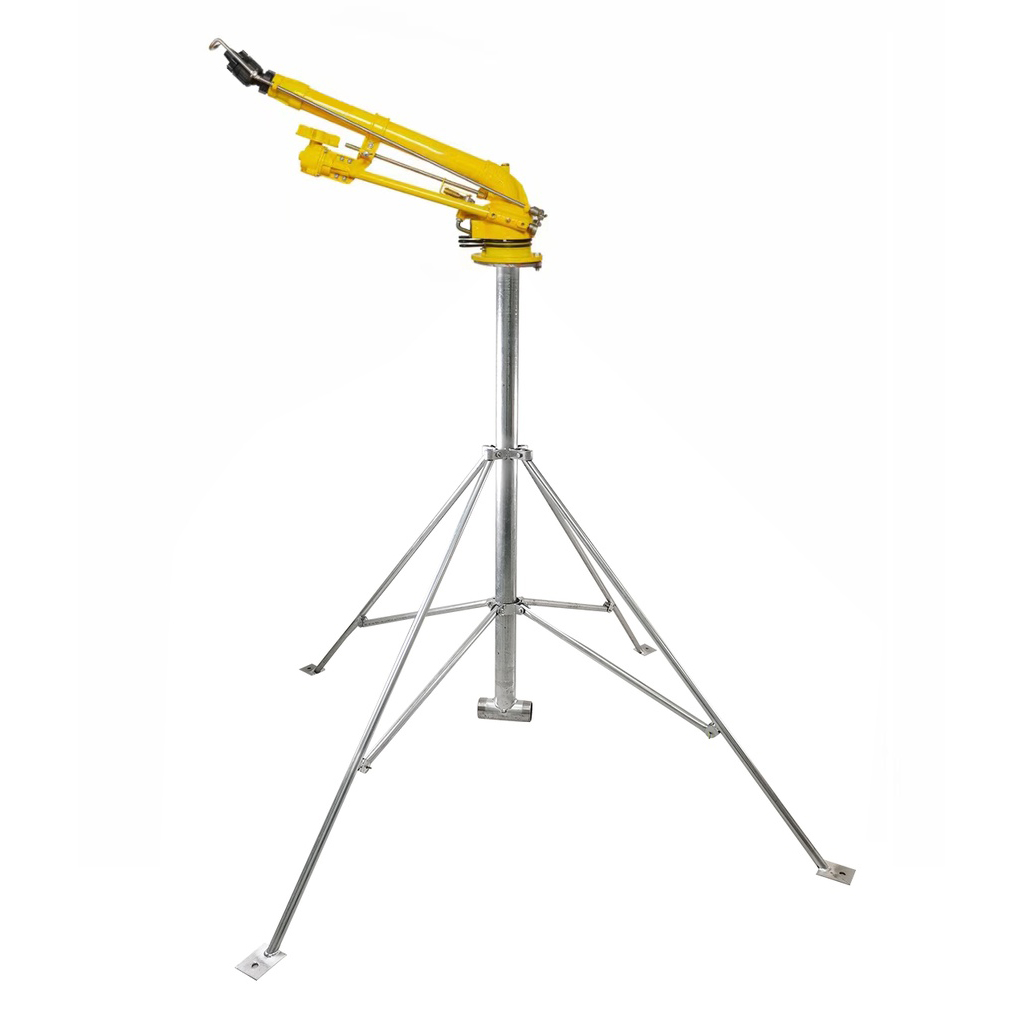

Wildland Blaze Quadpod Sprinkler

Wildland Series Quadpod Sprinklers:

The Wildland Ember Quadpod Sprinkler and the Spark Quadpod Sprinklers are a smaller version of the Blaze water cannon/sprinkler that can supply large spray with a radius of 360° or set to a partial arc. These mobile water cannon can be connected to other Quadpod Sprinklers to help create or expand a firebreak. It is well-suited for emergency response, municipal works, mills, and resorts. Please refer to the chart below to determine size of pump and water supply needed.

Blaze is 47" legs w/9 sizes of nozzles, 2" piping/large flows - Inlet 2" with 38mm wildland QC - comes with 2-QC & 1-Cap - ​Press. range 0.15-0.4Mpa (21.3-56.9kpsi)

Ember is 36"legs w/5 nozzle sizes, 38mm (1.5") piping/medium flows - Inlet 1.5" with 38mm wildland QC - comes with 2-QC & 1-Cap - ​Press. range 0.15-0.4Mpa (21.3-56.9psi)

Spark is 18" legs w/4 nozzle sizes, 25mm (1") piping/smaller flows - Inlet 1" w/38mm wildland QC - comes with 2-QC & 1-Cap - Press. range 0.15-0.4Mpa (21.3-56.9kpsi) Spark is designed for compact storage in trucks and trailers and can quickly be put into operation.

Below is the flow chart for the Blaze Quadpod
