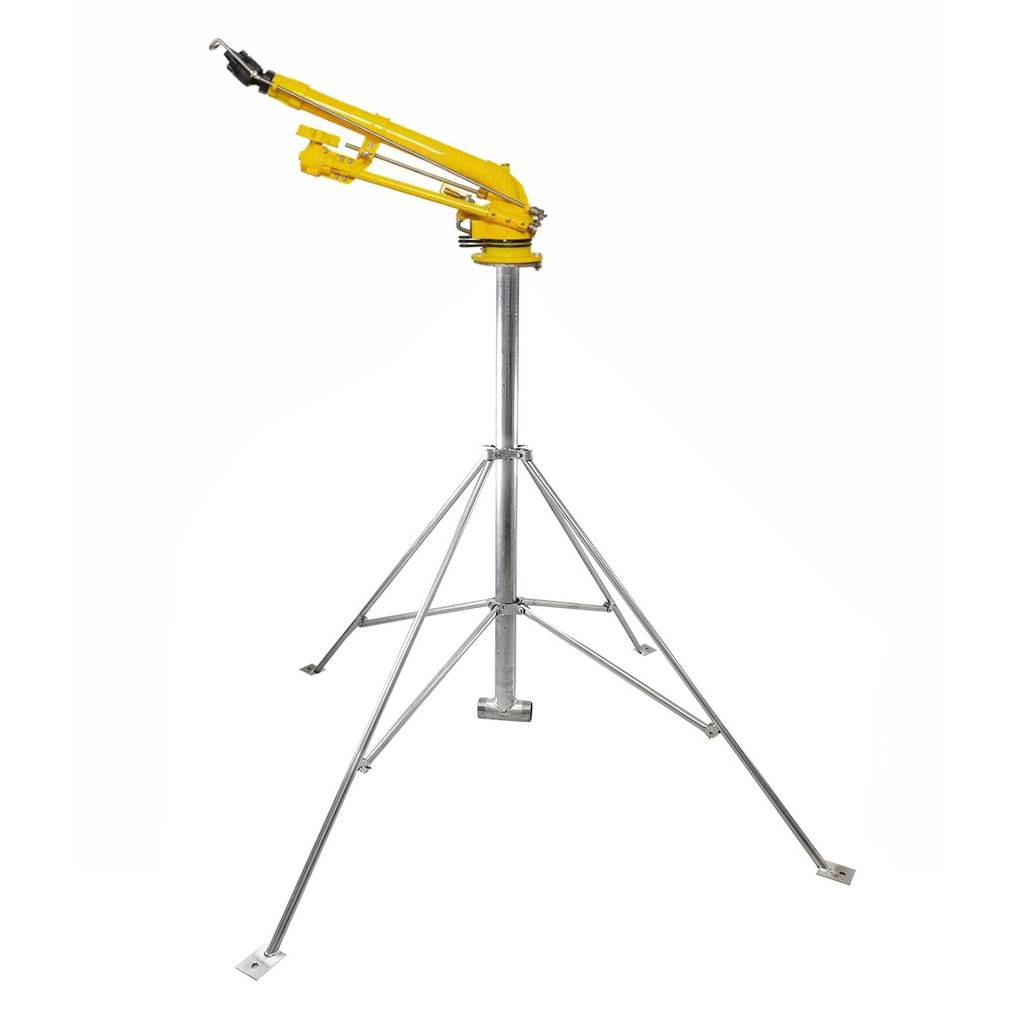

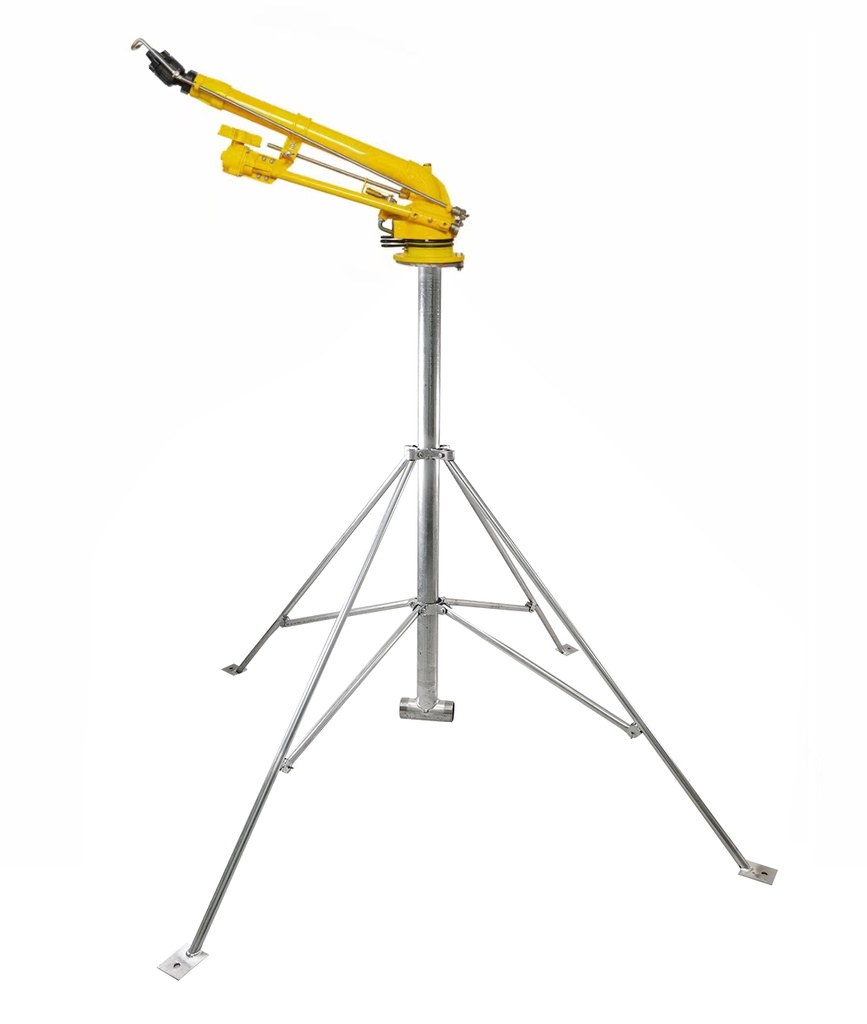

Wildland Big Gun Quadpod Sprinkler - 38mm (1.5")

The Wildland Quadpod Sprinkler is a water cannon like sprinkler that can supply maximum spray with a radius in a full 360° pattern or set to a partial arc. This mobile water cannon can be connected to other Quadpod Sprinklers to help create or expand a firebreak. It is well-suited for emergency response, municipal works, mills, and resorts. Please refer to the chart below to determine size of pump and water supply.

Comes with 9 optional nozzle sizes to meet different pump sizes. 10,12,14, 18, 20, 22, 24, 26, 28mm

We recommend you start with the smallest nozzle if you are setting them up in series. Be sure to calculate you flow and pressure you have available.

• Type: 50 Turbine Vortex
• Device Inlet: 2” Flange with 38mm forestry connection installed.
• Working Pressure: 0.2-0.5Mpa (29-73psi)
• Max Working Pressure: 0.8Mpa (116psi)
• Rotation: Horizontal 360°
• Installation Rack: Four Legged Quadpod 47"(1.2m)
• Water Inlet: Tee with 38mm forestry inlet and outlet, one side capped (reversed T type, one inlet, one outlet)
• Includes: (2) 2"/1.5" forestry reducer, and (1) 1.5" forestry cap
• Connecting Hose: 1.5" with forestry quick connect.

See flow chart below for flows and recommended pressures
