Forestry/Wildland Cottage Protection Sprinkler Systems w/pump & Suction Hose

Sprinkler on Telescopic Tripod - fully extended

Forestry/Wildland Cottage Protection Sprinkler Systems w/pump & Suction Hose

Product Type

This combination does not exist.

Frontier Forestry

Forestry

Features

Sprinklers are used to thoroughly wet down an area. This results in combustibles (buildings and landscape) being much less likely to ignite due to flying embers and the intense heat of a nearby fire.
The soaked landscape releases moisture into the air. This lowers the ambient temperature and increases the humidity level of the immediate area. These effects extend some distance above ground level. The result is that the advancing wildfire will tend to be deflected by this less supportive environmental pocket and pass by the protected property.
Sprinklers are most effective when in continual operation for 2 or more hours prior to the arrival of the fire. However, any operational time, even as little as an hour, will increase chances of a successful defense of the property.

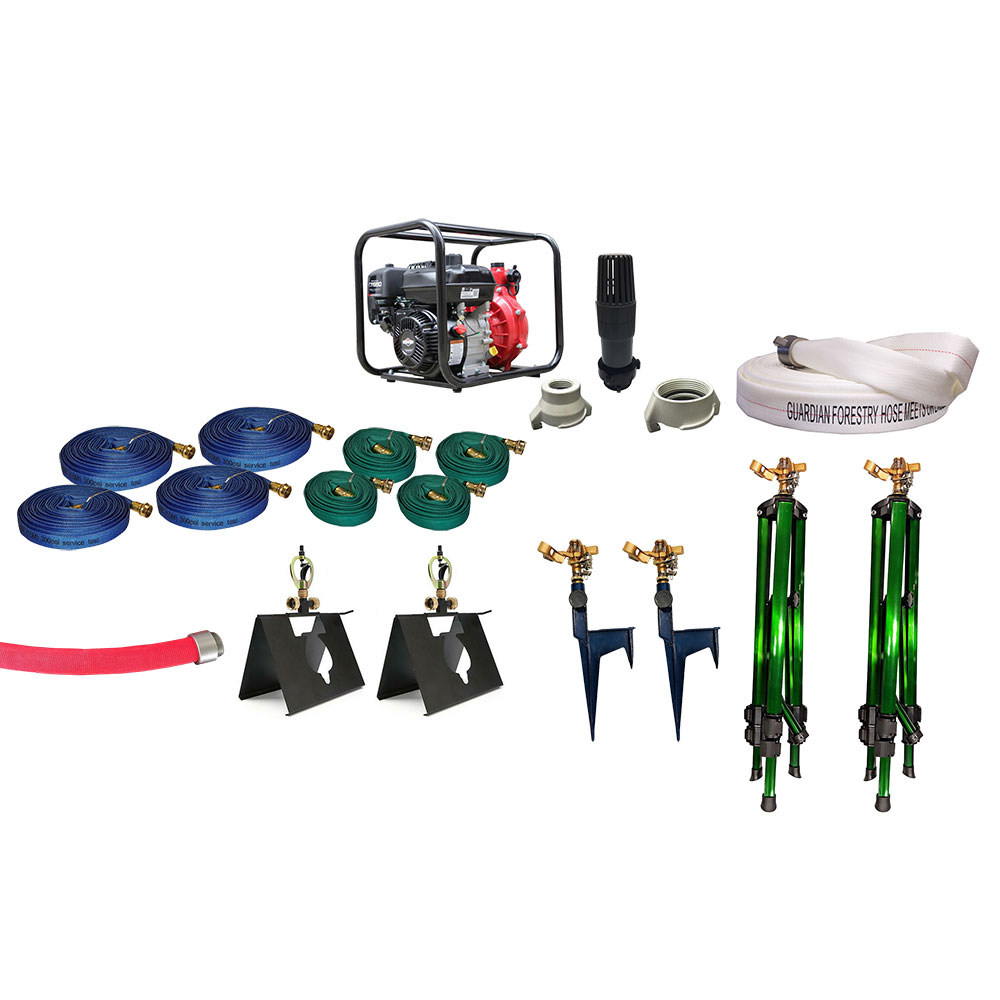

This package is assembled with the home owners needs in mind for Wildland fire protection in residential areas. The starter kit is composed of the following:

(1) Fire Pump 6.5hp Medium Pressure
- Electric Start
- 2" inlet
- 2" and (2) 1.5" outlets
(1) 10ft Suction Hose 2"
(1) Foot valve Strainer for drafting 2" NPT Plastic

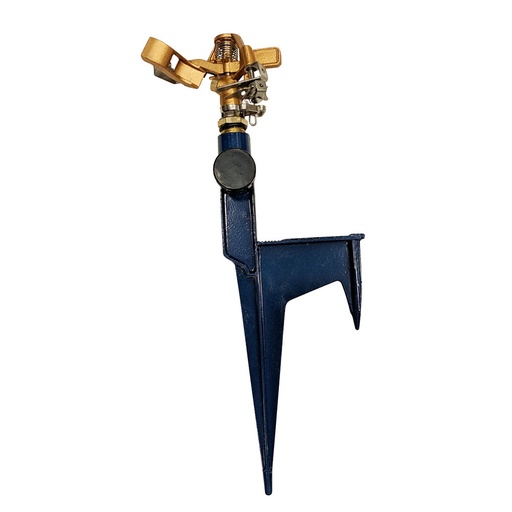

(2) Brass ground sprinklers with zinc metal step spikes
- 19mm (0.75") brass head operates at pressures of 25 - 80psi
- Flows of 0.84-1.62 m3/H (3.7 - 7.1gpm)
- Reach 10m-22m (32 - 72 feet) in diameter
- 19mm (0.75") female GHT x 19mm (0.75") male GHT
- 17cm x 7.5cm x 36cm (6.7" x 3" x 14.2")
- 0.6 kg (1.32 lbs.)
- Sprays full circle 360 degrees

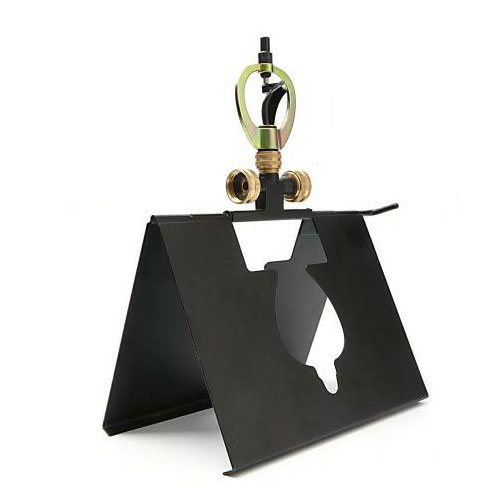

(2) Brass roof top sprinkler with roof peak bracket
- 19mm (0.75") brass head operates at pressures of 15 - 80psi
- Flows of 0.69 - 1.03 m3/H (3.04 - 4.54 gpm)
- Reach 4m - 10m (13 - 33 feet) in diameter
- 19mm (0.75") female GHT x 19mm (0.75") male GHT
- 28.5cm x 20cm x 3cm (11.25" x 7.8" x 1.2")
- 1.15 kg (2.54 lbs)
- Sprays full circle 360 degrees

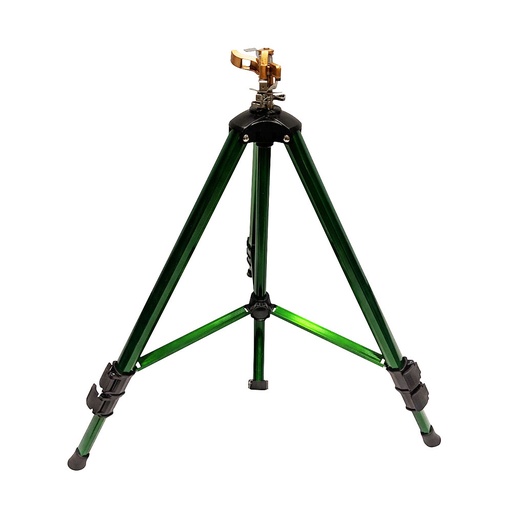

(2) Brass water sprinkler on telescopic tripod
- 19mm (0.75") brass head operates at pressures of 25 - 80psi
- Flows of 0.84 - 1.62 m3/H (3.7 - 7.1 gpm)
- Reach 10m - 22m (32 - 72 feet) in diameter
- 19mm (0.75") female GHT x 19mm (0.75") male GHT
- 17cm x 7.5cm x 36cm (6.7" x 3" x 14.2")
- Aluminum tripod 57cm – 122cm (22.5” - 48”)
- 2 kg (4.4 lbs)
- Sprays full circle 360 degrees
(1) Forestry Hose, 38mm (1.5") x 50ft with quick-connect couplings
- Light-weight and ready for action
- Resistant to most chemicals, petrol products, ozone and UV exposure, hydrolysis, rot, and mildew.
- Remains flexible to -55°C (-65°F)
- Meets or exceeds all performance requirements of NFPA 1961
(4) Patrol Hose, 19mm (0.75") x 50ft with GHT couplings
- Light-weight and ready for action
- Resistant to most chemicals, petrol products, ozone and UV exposure, hydrolysis, rot, and mildew.
- Remains flexible to -55°C (-65°F)
- Meets or exceeds all performance requirements of NFPA 1961
(4) Patrol Hose, 19mm (0.75") x 25ft with GHT couplings
- Light-weight and ready for action
- Resistant to most chemicals, petrol products, ozone and UV exposure, hydrolysis, rot, and mildew.
- Remains flexible to -55°C (-65°F)
- Meets or exceeds all performance requirements of NFPA 1961
(1) Adapter, 19mm (0.75") male GHT x 38mm (1.5") quick-connect
- Aluminum
(2) Adapter, 38mm (1.5") female NPT x 38mm (1.5") quick-connect
- Aluminum
(2) Caps 38mm (1.5") quick-connect
- Aluminum
(2) Forestry Gated Wye
- 19mm (0.75") GHT
