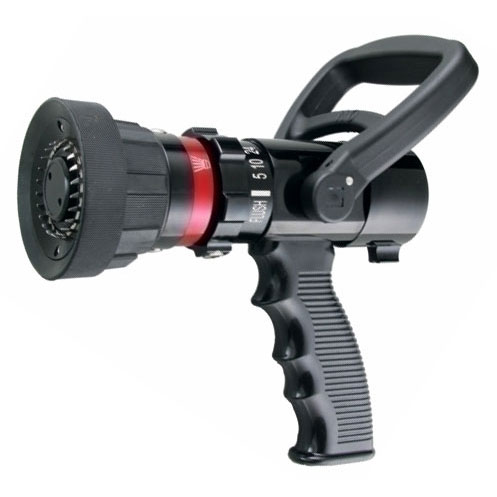

Frontier 25mm (1") Forestry Selectable Nozzle

Nozzle Configuration
- NHT Selectable 5/10/24/40 gpm @ 100 psi
- NPSH Selectable 4/8/12/16 gpm @ 100 psi
- NPSH Selectable 5/10/24/40 gpm @ 100 psi
- NPSH Selectable 12/23/30 gpm @ 100 psi
- NHT Selectable 4/8/12/16 gpm @ 100 psi

This combination does not exist.

Nozzles/Monitors

Designed for versatility with multiple flow settings and combinations of fog and stream
Selectable flow at a pressure
Once the flow is selected, it does not change with the pattern
Detent design for the flow selector
Stainless steel spinning teeth produce wide protective fog for firefighters
Flush debris without shutting down
1/4 turn from straight stream to fog
Ball shut-off
Meets NFPA 1964 Standard
Constructed for durability with stainless steel components, protective front bumper, and metal selector ring
Lightweight hard coat anodized aluminum
2.5 lbs (1.15 kg)
7.5" (190mm)

Nozzle Configuration

NHT Selectable 5/10/24/40 gpm @ 100 psi or NPSH Selectable 4/8/12/16 gpm @ 100 psi or NPSH Selectable 5/10/24/40 gpm @ 100 psi or NPSH Selectable 12/23/30 gpm @ 100 psi or NHT Selectable 4/8/12/16 gpm @ 100 psi
