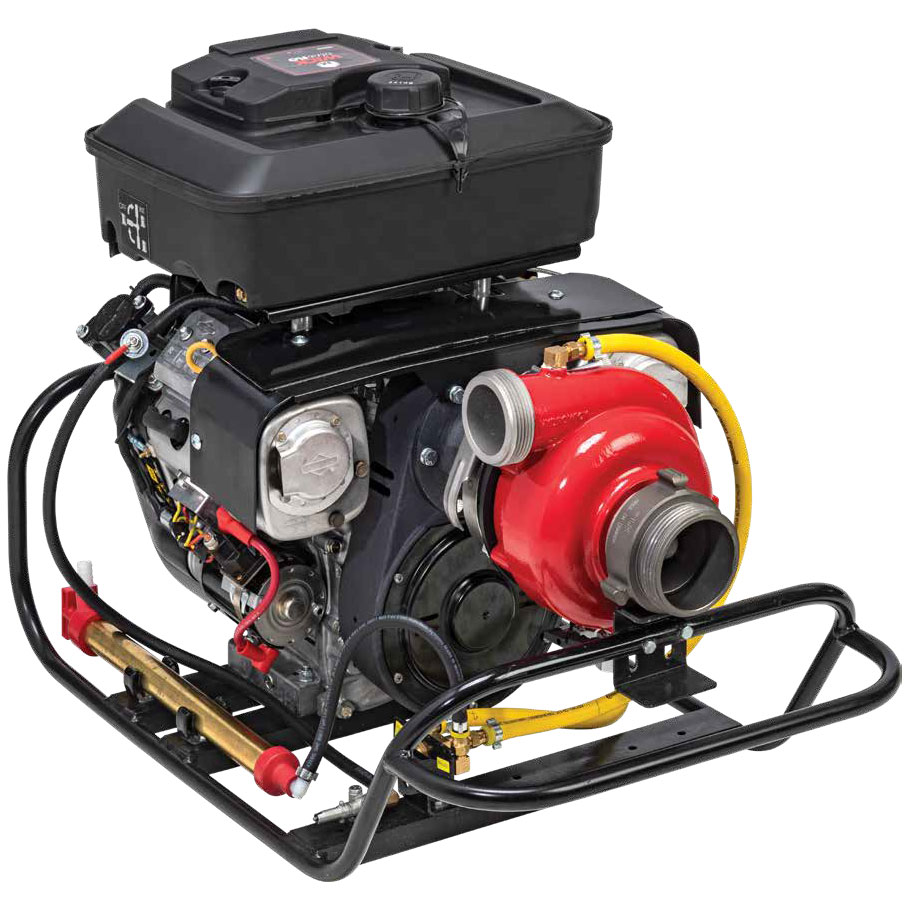

WICK UltraFlo Forestry Fire Pump - B&S, 4-stroke, 2 stage (specify inlet/outlet threads)

INTRODUCING THE NEW WICK ULTRAFLO™
High power combination volume/pressure attack pump ideal for urban interface & wildland applications.

Featuring Mercedes Textile's all-new innovative 2-stage pump end, it delivers 2x more volume at higher pressures. Powered by a Briggs & Stratton Vanguard (18HP or 23HP), the WICK UltraFlo™ is available in portable or vehicle-mounted configurations. Engineered with our exclusive loss of prime protection, electric start and maintenance-free speed increaser to provide proven and powerful performance.

Features

• Quick-release stainless steel clamp for easy maintenance
• Foam-compatible pump end, interchangeable with our standard W2, W3 and W4 pump ends
• Standard 18HP 4-stroke Briggs & Stratton Vanguard “V Twin” air-cooled engine. Also available in 23HP
• Electric start with manual recoil backup (battery optional)
• Maintenance-free speed increaser
• Hand-priming pump & pressure gauge included
• Standard 3" (76mm) NPSH inlet with NH adaptor on intake unless specified.
• Discharge is 2.5" (65mm) NPSH unless specified.
• Integral fuel tank and remote fuel connection

Applications

• Simultaneous attack lines
• High volume attack lines
• Structure Protection
• Tandem pumping
• Parallel pumping
• Remote water transfer
• Vehicle Applications:
• • Brush trucks
  • Boat fire pumps
  • Slip-on units

Specifications

• 32.5"l x 19.5"w x 24"h (82.5cm x 50cm x 61cm)
• 23HP: 163lbs. (74kg)

• 18HP: 160lbs. (72.6kg)
• Suction: 3" (76mm) NH
• Discharge: 2.5" (65mm) NPSH
• Engine
  • Briggs and Stratton Vanguard™  "V Twin" air cooled engine with over-speed protection
  • 4 Stroke

  • 23hp @ 3,600 rpm
  • Electric ignition
  • Cartridge-type spin-on oil filter
