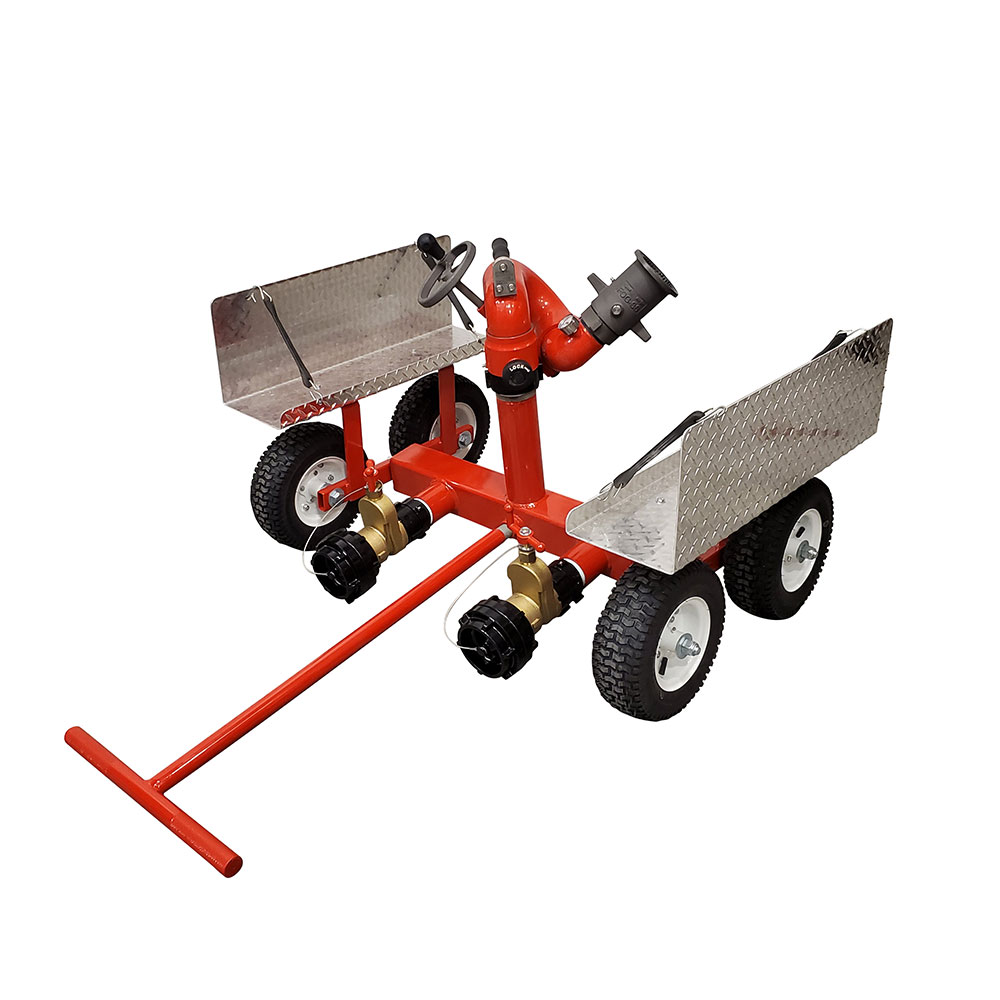

WFR's Mini-Chargers are mounted on 4-wheels attached to a manifold,
manufactured with a 4" schedule 40-pipe inlet manifold, with red powder
coat finish, which is furnished with (2) 2.5" (65mm) inlets with two inlets each with a hydrant gate valve.
Both inlets come with 65mm swivel inlets (BAT standard) (specify if
special threads required) or optional Storz inlets are available in
100mm (4") or 125mm (5"). A removable tee pull handle is supplied to
minimize the storage and shipping space required. Comes with hose rack
and pressure gauge. If hose is required, please specify as this is extra
cost.
Frontier 868 Fixed 1250gpm Monitor with Hand Wheel
- Flow up to 1,250 GPM (4,800 LPM) @ 100 psi
- Movement range: 360° horizontal travel & 140° vertical travel
- Flow turning vanes in each elbow to reduce friction
- Aluminum alloy body
- Epoxy coating exterior.
- Single Hand-Wheel Control for vertical movement
- Full 77mm (3") waterway
- Inlet: 65mm (2.5") NPT thread
- Discharge Outlet: 65mm (2.5") BAT or NHT threads
- Dimensions: 12" H x 15" W (30cm x 38cm)
- Weight: 120 lbs (54 kg)
- Pressure gauge
- Note: when using the 3" NPT inlet the use of Loctite is mandatory.
Frontier Selectable Flow Monitor Nozzle
- Change flow settings by baffle
- Lightweight alloy construction
- Combination of narrow fog, wide fog and straight stream
- Flow remains constant in all patterns "Built-in" stream shaper for maximum reach
- Precision machined teeth for full fog pattern
- Grease fittings for easy maintenance
- For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need.
- 250/300/500/700 GPM @ 100 psi

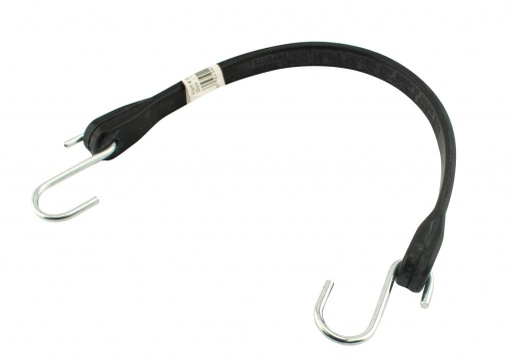

![[444545295] Mini-Charger 9" Bungee Cord](https://cdn.wfrfire.com/web/image/product.product/538/image_512/%5B444545295%5D%20Mini-Charger%209%22%20Bungee%20Cord?unique=0736ded)
