Features

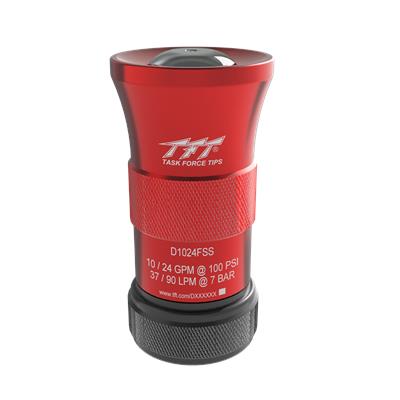

The Twister Barrel nozzle is a selectable dual-gallonage combination nozzle designed to meet the requirements of USFS 5100-239. The nozzle operates at 10 & 24 GPM (37 & 90 LPM) at 100 PSI (7 bar). Operators twist the front of the barrel through the following positions: off, low flow straight stream, low flow narrow fog, high flow straight stream, high flow fog.
Features & Benefits:
- Flow rate: 10 & 24 GPM (37 & 90 LPM)
- Foam solution compatible
- Knurled inlet coupling
- No bumper
Specifications
| Pistol Grip | No |
| Valve Design | Twist Style Baffle |
| Flow Rate | 10/24 gpm (37/90 l/min) |
| Break Apart Style | Tip Only |
| Inlet Coupling Style | Knurled |
| Body Size | 1" (25 mm) |
| Inlet Coupling Swivel | Rigid |
| Style | Break-Apart |
| Pressure Mode | Single |
| Type | Selectable |
| Operating Pressure | 100 psi (7 bar) |
| Remote Control | No |
| Weight | 0.5 |
| Bumper Material | No Bumper |
