Features

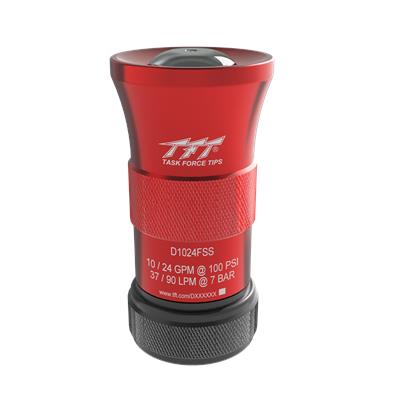

The Twister Barrel nozzle is a selectable dual-gallonage combination nozzle designed to meet the requirements of USFS 5100-239. The nozzle operates at 10 & 24 GPM (37 & 90 LPM) at 100 PSI (7 bar). Operators twist the front of the barrel through the following positions: off, low flow straight stream, low flow narrow fog, high flow straight stream, high flow fog.
Features & Benefits:
- Flow rate: 10 & 24 GPM (37 & 90 LPM)
- Foam solution compatible
- Knurled inlet coupling
- No bumper
Specifications
| Pistol Grip | No |
| Valve Design | Twist Style Baffle |
| Flow Rate | 10/24 gpm (37/90 l/min) |
| Break Apart Style | Tip Only |
| Inlet Coupling Style | Knurled |
| Body Size | 1" (25 mm) |
| Inlet Coupling Swivel | Rigid |
| Style | Break-Apart |
| Pressure Mode | Single |
| Type | Selectable |
| Operating Pressure | 100 psi (7 bar) |
| Remote Control | No |
| Weight | 0.5 |
| Bumper Material | No Bumper |

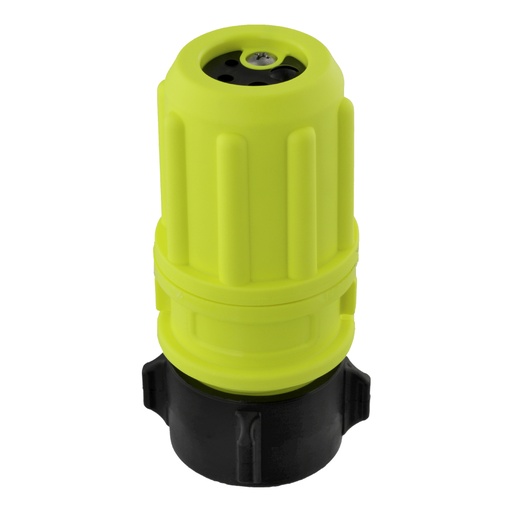

![[4044-NP (462815130)] Scotty Revolver Multi-flow Nozzle 3-6-9-12 gpm - 38mm (1.5") NPSH - Yellow Hanson](https://cdn.wfrfire.com/web/image/product.template/5928/image_512/%5B4044-NP%20%28462815130%29%5D%20Scotty%20Revolver%20Multi-flow%20Nozzle%203-6-9-12%20gpm%20-%2038mm%20%281.5%22%29%20NPSH%20-%20Yellow%20Hanson?unique=4e3f697)
