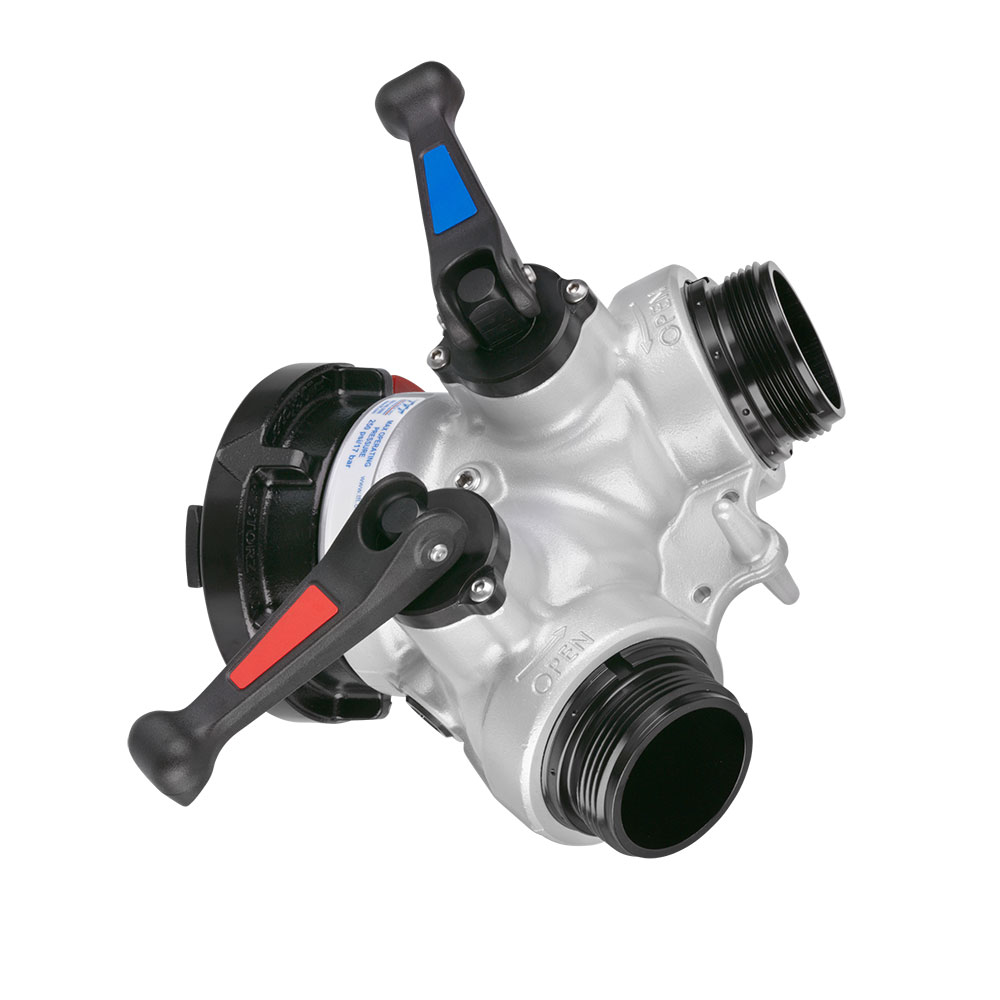

The
lightweight wye shall be configured with a 4" or 5" Storz swivel inlet
and two (2) 2-1/2" male threaded outlets. The outlets shall have
quarter-turn aluminum ball valves with full 2-1/2" waterway, and
color-coded folding Nylon handles with auto-lock feature. A 1/4" NPT
female plugged pressure gauge port, 3/4" NPT female plugged bleeder
valve port, and carrying handle shall be standard. For corrosion
resistance the wye shall be hardcoat anodized and shall have a durable
silver powder coat interior and exterior finish. The unit shall be
covered by a five-year warranty. Weight: 12 lbs.
Available upon request:
Other threads available
Slow Close option
Gauge kit
Vent Drain kit
Thread Type
100mm (4") Female NHT x Two (2) 65mm (2.5") Male AMA or
100mm (4") Female NHT x Two (2) 65mm (2.5") Male BAT or
100mm (4") Storz x Two (2) 65mm (2.5") Male BAT or
100mm (4") Storz x Two (2) 65mm (2.5") Female NHT or
100mm (4") Storz x Two (2) 65mm (2.5") Male WCT or
125mm (5") Storz x Two (2) 65mm (2.5") Male AMA or
125mm (5") Storz x Two (2) 65mm (2.5") Male BAT or
150mm (6") Storz x Two (20 65mm (2.5") Male BAT
TFT LDH Gated Wye Reducer
