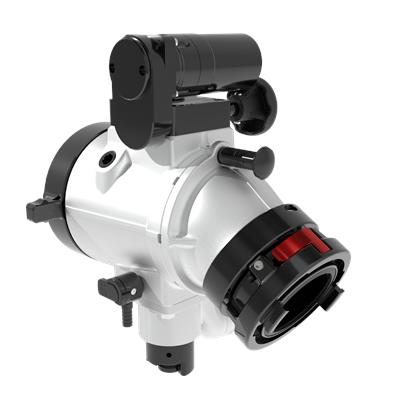

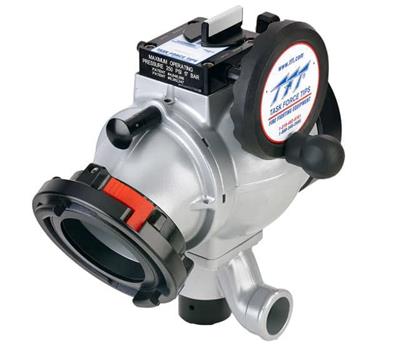

HIGH FLOW ELECTRIC
REMOTE BALL INTAKE VALVE
Task Force Tips model
#AX3SX-NX-RC electric remote control operated lightweight aluminum high flow
ball intake valve shall be provided. The unit shall be equipped with an
adjustable pressure relief valve under the main valve body with an eight
position adjustable inlet elbow. The valve shall be controlled by a remote
panel-mounted push-button switch with LED lights to indicate valve position.
The valve can also be controlled with an NFPA compliant slow-close knob which
can be configured for left or right hand operation on the valve. A 3/4"
bleeder valve shall be provided to exhaust excess air or water from the valve
and hose line. A valve-mounted position indicator shall be provided to allow
for quick visualization of the status of the valve in the open, closed or
partial positions. For maximum corrosion protection the aluminum casting shall
be hardcoat anodized, with a powder coat internal and external finish and all
components facing the wet side of the valve shall be constructed from stainless
steel. The electronic controls shall be
compatible with 12 or 24 volt DC systems.
The connections shall be:
6" Storz swivel with 30 degree swiveling detent elbow and a 6" female
NH swivel long handle connection and include polymer bearing strips for
prevention of galvanic corrosion. The unit shall have a unique serial number
and be covered by a five-year warranty.
