The
unique shape of SMC’s aluminum side plates allow the efficient use of
Prusik hitches as a belay or progress capture device. Constructed with a
3” (77mm) diameter sheave running on a high efficiency ball bearing.
Low profile fasteners help eliminate the possibility of the pulley
snagging. Pulley will accommodate up to 13 mm rope.
Ball bearing
Large top hole easily accepts 3 large carabiners
Designed for 11 mm to 13 mm ropes
Precision machined aluminum side plates and 3” (77mm) sheaves
Sealed bearings
Double pulleys include a becket

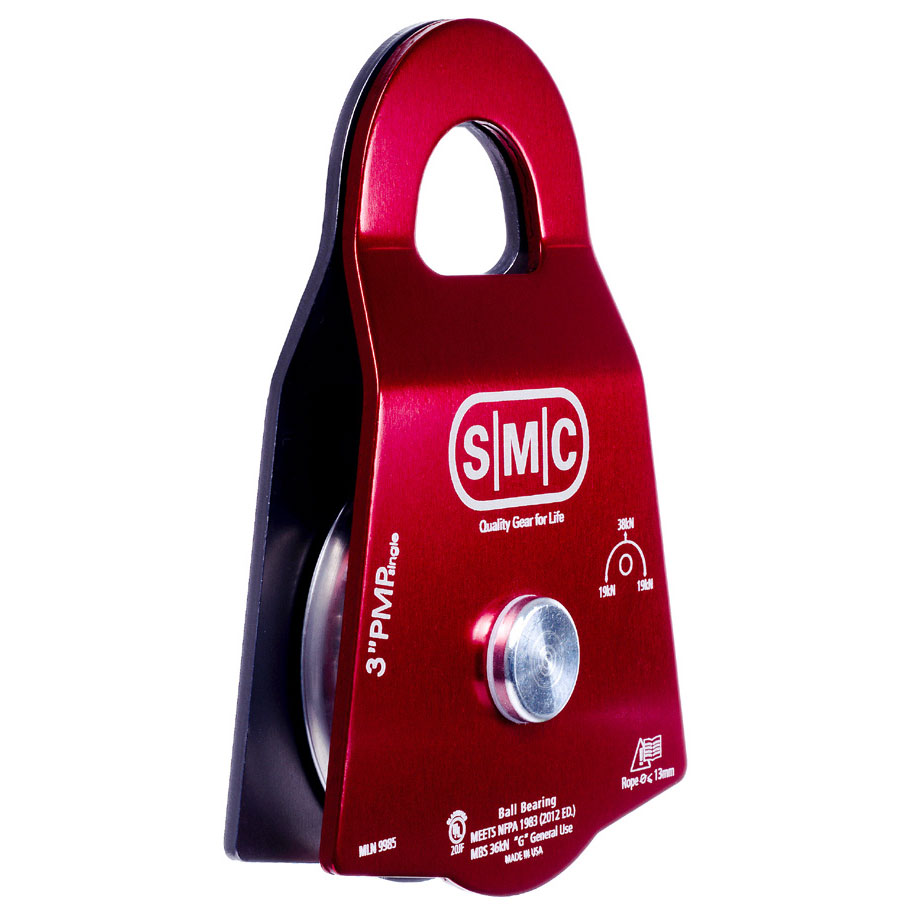

Single Pulley Specifications
1.38"h x 4.17"w x 5.85"l (3.5cm x 10.6cm x 14.9cm)
Weight: 12.5oz (354 g)
MBS: 38 kN (8,542 lbf)
Tread: 2.46" (63mm)
Axle: Ball Bearing
Sheave Material: Aluminum
Sheave: 2.97" (75mm)
Max. Rope Size: 13mm

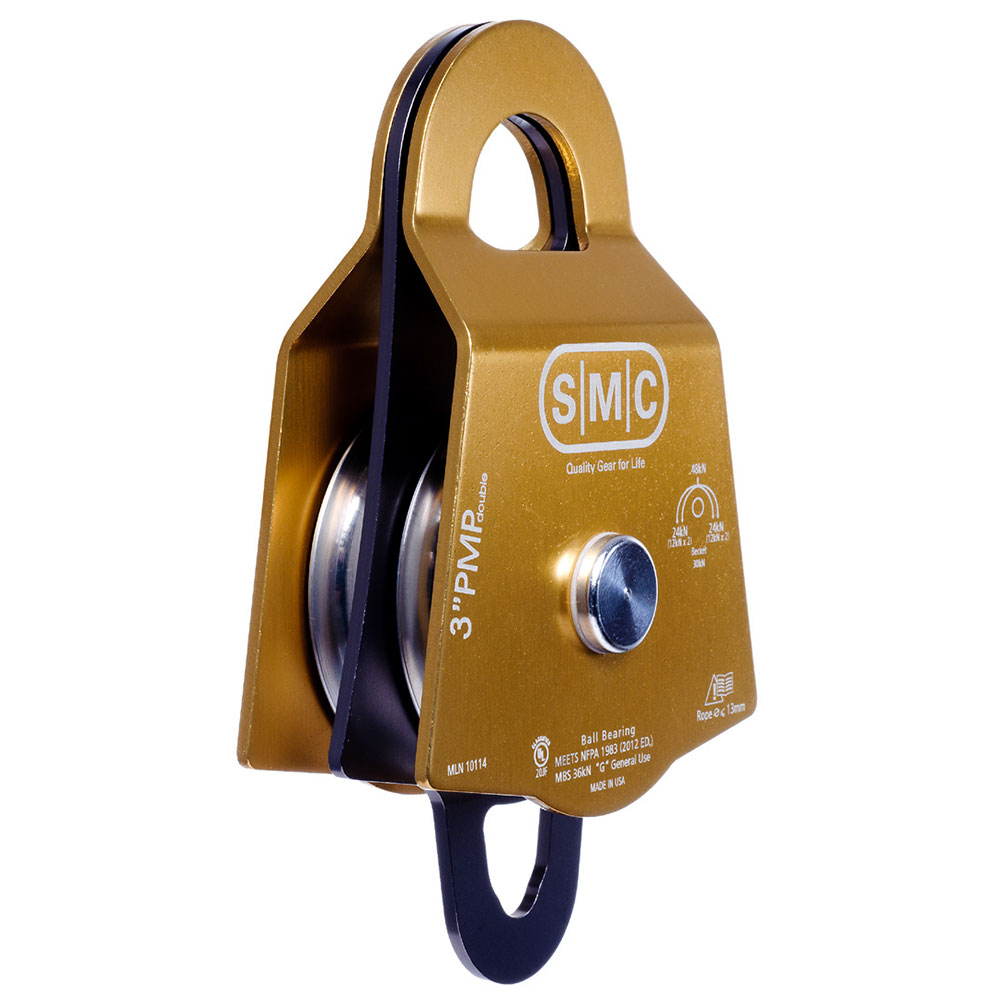

Double Pulley Specifications
2.2"h x 4.17"w x 7.1"l (5.6cm x 10.6 cm x 18cm)
Weight: 1.3 lbs (590g)
MBS: 48 kN (10,790 lbf)
Tread: 2.46" (63mm)
Axle: Ball Bearing
Sheave Material: Aluminum
Sheave: 2.97" (75mm)
Max Rope Size: 13mm
Becket Strength: 30 kN (6,744 lbf)
Product Configuration
3'' - Single Pulley (Red) or
3'' - Double Pulley (Gold)
