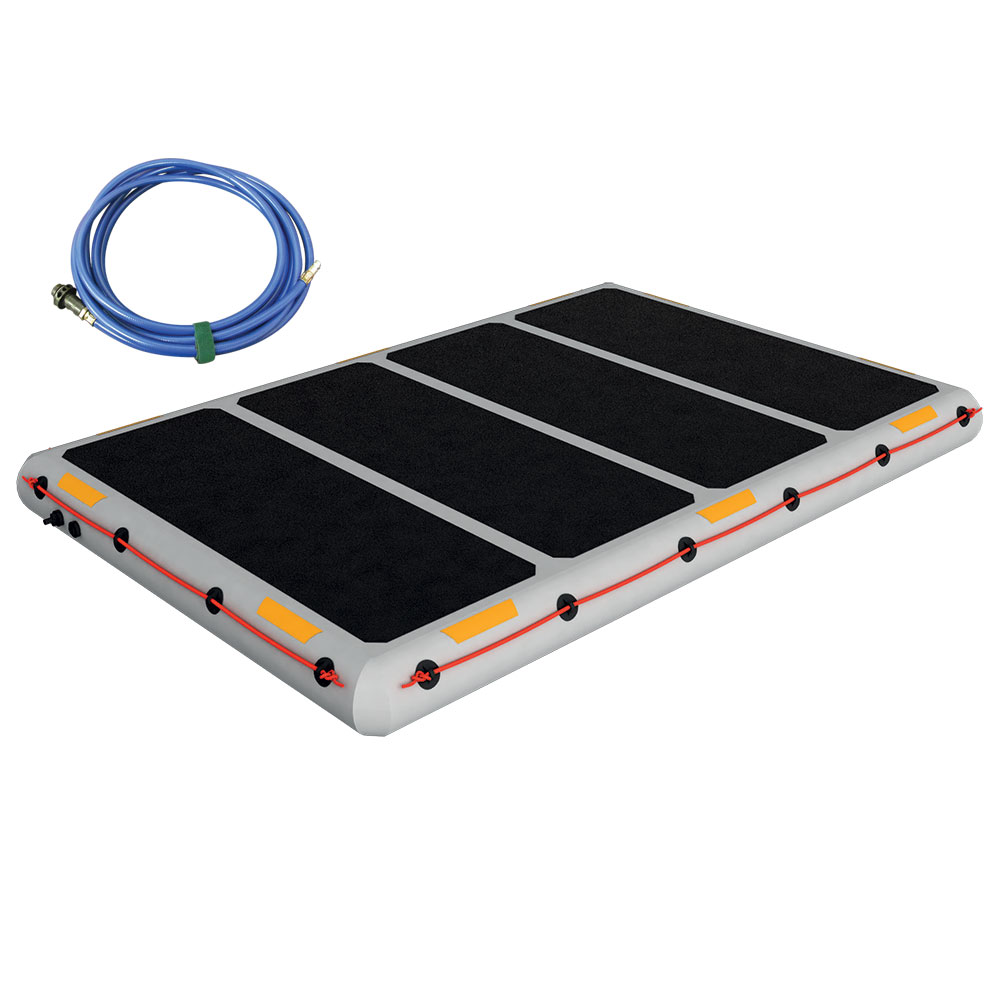

The
rescue walkway is an inflatable rescue path used on unstable terrain
for casualty recovery operations. It is used by fire brigades and other
rescue units. The design of the walkway assures superb stability in all
circumstances and can be used either as a raft or a work platform on
ice, water, sand, to name just a few. It can be easily inflated and
deployed.
Rapidly unrolled, inflated and emptied
Can be used as a raft
Can be used as a working platform
Excellent stability
Model
Length
Width
Height
Weight Capacity
Working Pressure
Carrying Capacity
Air Requirement
ATP 5
500 cm (16.4 ft)
165 cm (5.4 ft)
15 cm (6")
34 kg (75 lbs)
0.5 Bar (7.3 psi)
1000 kg (2205 lbs)
66 cu ft
ATP 10
1000 cm (32.8 ft)
165 cm (5.4 ft)
15 cm (6")
66 cm (146 lbs)
0.5 Bar (7.3 psi)
2000 kg (4409 lbs)
131 cu ft
ATP 15
1500 cm (49.2 ft)
165 cm (5.4 ft)
15 cm (6")
100 cm (221 lbs)
0.5 Bar (7.3 psi)
3000 kg (6614 lbs)
197 cu ft
Product Size
ATP 5 - 16.4' x 5.4' x 6" or
ATP 10 - 32.8' x 5.4' x 6" or
ATP 15 - 49.2' x 5.4' x 6"
Rescue Walkway
