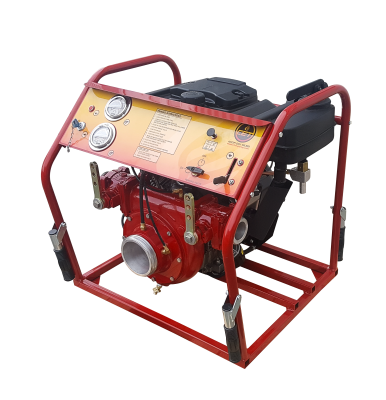

Fire Pump 23hp High Volume - Gas Powered - Dual Outlet-CET

This pump is the ideal tool to fill your fire truck, supply your pump truck or carry water over a long distance.

Also available in skid version

ENGINE SPECIFICATIONS

• Vanguard, model 380000, air cooled engine
• V-Twin cylinder, 4-stroke gasoline engine
• Electric start with recoil start as backup
• 2.25 Gallons (8.5 L) integrated fuel tank

INCLUDED ACCESSORIES

• Full control panel with pressure gauge, vacuum gauge, throttle, choke, starter, panel light and priming valve
• 16 Amps alternator
• Low oil alert
• 12-V battery

PUMP UNIT SPECIFICATIONS

• C.E.T. single stage centrifugal pump
• Pump body made from high resistance aluminum alloy
• Bronze impeller
• Mechanical shaft seal
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift
• Two 2 1/2” (65 mm) delivery outlets with Fire Type swing-out valve
• One 4” (100 mm) suction inlet
• Dimensions: Length: 24 3/4" (630 mm) Width: 26 1/4" (667 mm); Height: 25 3/4" (654 mm)
• Wet weight: 198 lbs (90 kg)

PERFORMANCE

MAX FLOW: 650 GPM MAX PRESSURE: 115 PSI 430 GPM @ 25 PSI 310 GPM @ 50 PSI 110 GPM @ 100 PSI

LIMITED WARRANTY

3 YEARS
