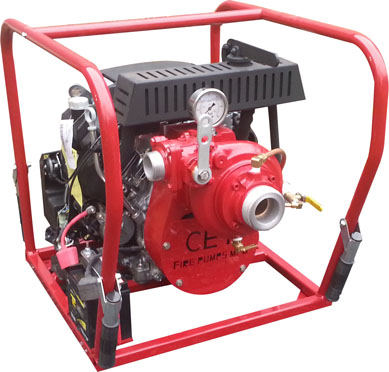

This high pressure Honda pump goes up to 300 psi. Engine and pump are mounted on a protective frame made of steel with shock absorbent and folding handles
Also available in skid version
ENGINE SPECIFICATIONS
- GX630 Honda air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 l) detachable fuel tank. The fuel tank is made from plastic
INCLUDED ACCESSORIES
- 17 Amps alternator
- Low oil alert
- Pressure gauge
- 12-V battery
PUMP UNIT SPECIFICATIONS
- Transmission drive C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Belt drive transmission
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1.5" (38 mm) delivery outlet with Fire Type swing-out valve
- One 2.5" (65 mm) suction inlet
- Dimensions: 27.5"l x 22"w x 24"h (700mm x 560mm x 610mm)
- Weight: 185 lbs (84 kg)
PERFORMANCE
140 GPM @ 50 PSI
125 GPM @ 100 PSI
100 GPM @ 150 PSI
60 GPM @ 200 PSI
40 GPM @ 250 PSI
25 GPM @ 275 PSI
