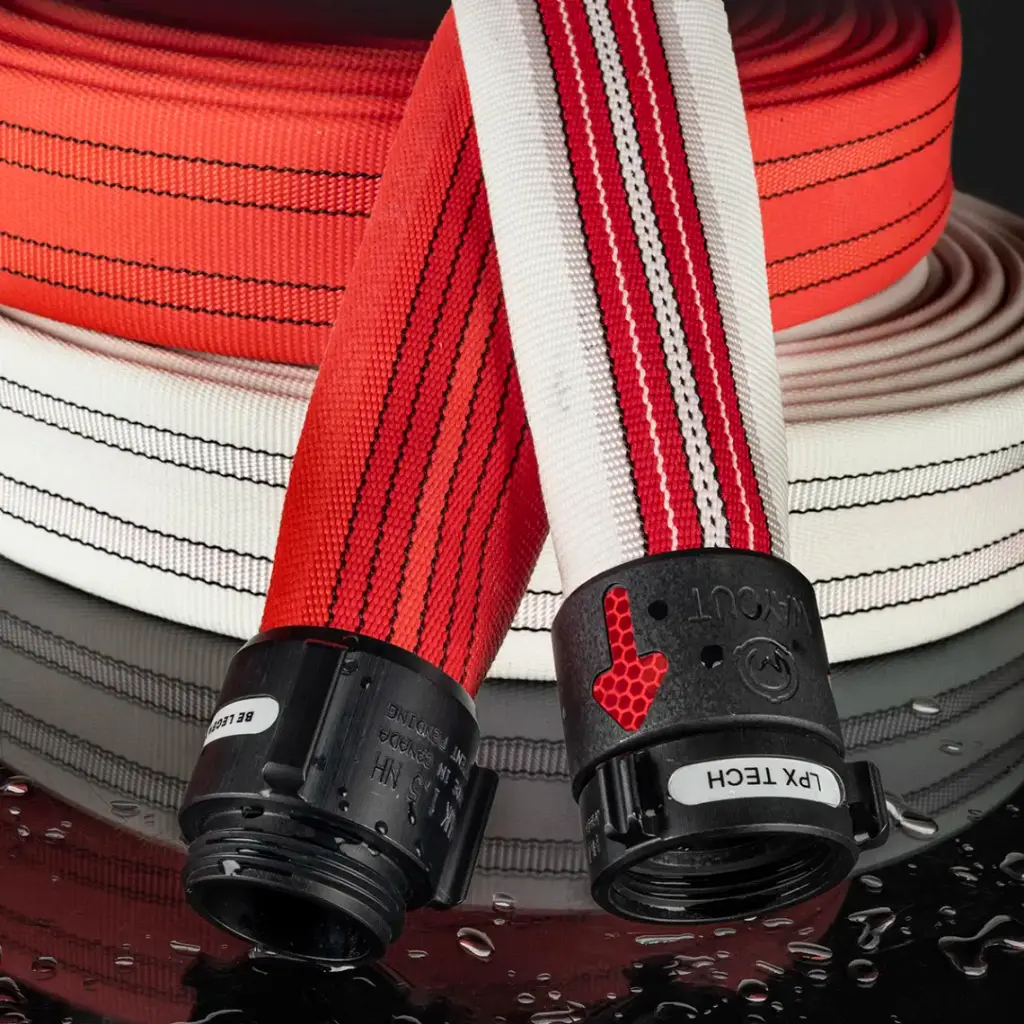

Introducing LPX™ Technology – evolving the small diameter line for low pressure attack. Mercedes Textiles' patent-pending technology reinforces only the nozzle-end of the hose to minimize whip & kinking for increased control without sacrificing the lightweight packability & maneuverability of the rest of the line. This is precision innovation – minimum change for maximum effect where it matters most.
KrakenEXO® LPX 1-½” and ExoMetro® LPX 1-¾” offer superior nozzle handling on small diameter, low-pressure attacks – delivering 150-160 GPM at 50-75 PSI with up to 30% less weight than standard 1-¾” hose.
LPX lines are equipped with Mercedes’ patented Breather Technology strips that release trapped air & water for superior packability. Standard with our exclusive black WAYOUT® couplings with red recessed, reflective arrows and iDENTIFY® coding system.
KrakenEXO LPX 1.5"
KrakenEXO LPX was engineered to advance the 1-1/2” handline to meet the needs of the modern fire service. Delivering 150 - 160 GPM flows at 50 - 75 PSI for up to 30% lighter*, more agile attack packages that increase control and reduce firefighter fatigue – particularly in low manpower situations.
LPX lines are equipped with Mercedes’ patented Breather Technology strips that release trapped air & water for superior packability. Standard with our exclusive black WAYOUT® couplings with red recessed, reflective arrows and iDENTIFY® coding system.
Specifications 1.5" x 1.5" (KrakenEXO LPX) (38mm x 38mm)
| Specification | Measurements |
|---|
| Trade size | 1.5 in (38mm) |
| Bowl size | 1 15/16 in (49 mm) |
| Internal Diameter (dry ID) | 1.67 in (42.42 mm) |
| ID @ 50 PSI | 1.73 in (43.94 mm) |
| ID @ 150 PSI | 1.75 in (44.45 mm) |
| OD @ 150 PSI | 2.01 in (51.05 mm) |
| FL co-efficient (at 100′) | 13.8 |
| Dry weight (50′ uncoupled) | 13.4 lbs (6.1 kg) |
| Charged weight (50' coupled @ 100PSI) | 65.9 lbs (29.9 kg) |
| Coil diameter | 16.5 in (419 mm) |
| Flat width | 2.93 in (75 mm) |
| Edge thickness | .3 in (7.6 mm) |
| 180 bend thickness | .9 in (22.9 mm) |
| Service pressure | 400 psi (27.6 bar) |
| Proof pressure | 800 psi (55.2 bar) |
| Burst pressure | 1500 psi (103.5 bar) |
| Attack? | |
| Built for low pressure nozzles? | |
| Supply? | |
| Potable water safe? | |
| UL approved? | |
| Warranty? | 2-10-L |
ExoMetro LPX 1.75"
While the original ExoMetro stands on its own as a high-performance low pressure line, adding LPX Technology maximizes nozzle-handling performance for increased control while still offering a lighter, more manageable exact-diameter 1-3/4" line.
Specifications 1.75" x 1.5" (ExoMetro LPX) (51mm x 38mm)
| Specification | Measurement |
|---|
| Trade size | 1.75 in (44 mm) |
| Bowl size | 2 in (51 mm) |
| Internal Diameter (dry ID) | 1.77 in (44.96 mm) |
| ID @ 50 PSI | 1.79 in (45.57 mm) |
| ID @ 150 PSI | 1.81 in (45.97 mm) |
| OD @ 150 PSI | 2.07 in (52.58 mm) |
| FL co-efficient (at 100′) | 13.7 |
| Dry weight (50′ uncoupled) | 15.2 lbs (6.9 kg) |
| Charged weight (50' coupled @ 100PSI) | 71.3 lbs (32.3 kg) |
| Coil diameter | 17 in (432 mm) |
| Flat width | 3 in (76 mm) |
| Edge thickness | .32 in (8.1 mm) |
| 180 bend thickness | .9 in (22.9 mm) |
| Service pressure | 400 psi (27.6 bar) |
| Proof pressure | 800 psi (55.2 bar) |
| Burst pressure | 1500 psi (103.5 bar) |
| Attack? | |
| Built for low pressure nozzles? | |
| Supply? | |
| Potable water safe? | |
| UL approved? | |
| Warranty? | 2-10-L |
