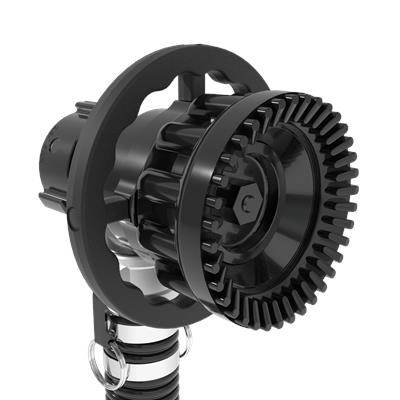

This fixed gallonage fog nozzle is a simple and rugged self-educting
foam nozzle with superior stream quality and reach. The fog angle is
user adjustable between wide fog and straight stream. The nozzle’s
baffle is easily removed for flushing debris. Models are rated at 100
psi (7 bar) and are available in two versions.
The smaller version
is available in 250, 350, 500 or 750 gpm (950, 1300, 2000, 3000 l/min).
The simple flow geometry can educt foam concentrate at .5%, 1%, 3%, or
6%.
The larger version is available with your choice of 1000,
1250, 1500 or 2000 gpm (3800, 4800, 6000 or 8000l/min). The standard
swivel coupling is 2.5” NH female threads with customer specific threads
available upon request, at no extra charge. The simple flow geometry
can educt foam concentrate at 1% or 3%.

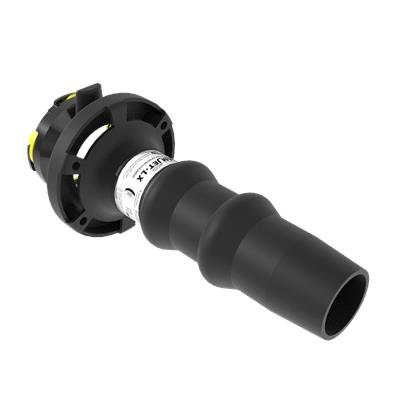

![[V-15383] FoamJet Aspirating Nozzle Attachment (Low Expansion - All MasterStream 1000 & 1250S / MasterFoam)](https://cdn.wfrfire.com/web/image/product.product/15383/image_512/%5BV-15383%5D%20FoamJet%20Aspirating%20Nozzle%20Attachment%20%28Low%20Expansion%20-%20All%20MasterStream%201000%20%26%201250S%20-%20MasterFoam%29?unique=2b89c3f)
