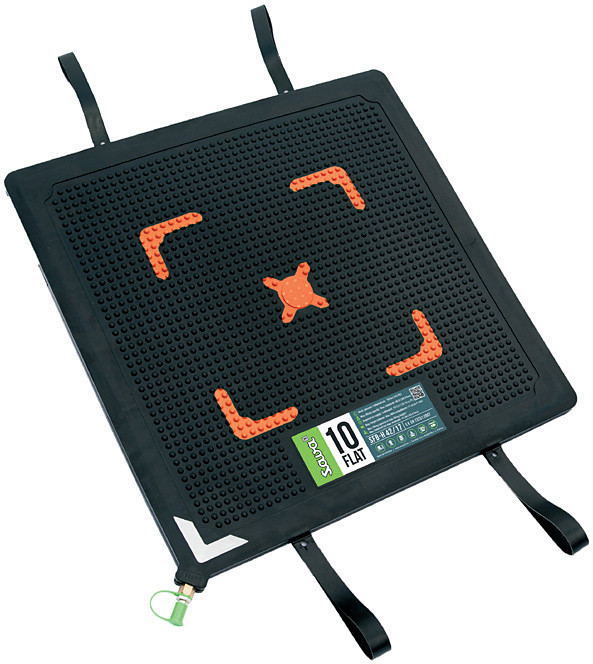

High-pressure lifting bags are used for lifting the heaviest loads. High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.
This product is only the air bag - 10 Bar (145 psi). See the connection details below and the related products to complete the set up required
* What is unique about the Savatech Flat bags is that they start out flat and remain flat even when fully inflated (flat working surface). With the Savatech lifting bags at full inflation height, only the sides curl. The bag doesn’t crown as conventional high-pressure lifting bags do.*
Hook-up/Connection details:
Connect SCBA bottle to regulator
Connect high pressure hose to regulator
Connect other end of high pressure hose to controller
Connect low pressure hoses between controller and bags
* Also available in 8 Bar (116 psi) upon request
Technical Data
Model
Length
Width
Height
Weight
Air Requirement
Max. Lifting Capacity
Max. Lifting Height
Max. Lifting Capacity at Max. Lifting Height
SFB-H 8/17
55 cm (22")
55 cm (22")
2.5 cm (1")
7.4 kg (16 lbs)
9.9 cu ft
29 tons
17 cm (6.7")
8.9 tons
SFB-H 12/17
61 cm (24")
61 cm (24")
2.5 cm (1")
9.2 kg (20 lbs)
15.5 cu ft
34.7 tons
17 cm (6.7")
13.1 tons
SFB-H 25/17
78 cm (31")
78 cm (31")
2.5 cm (1")
14.5 kg (32 lbs)
23 cu ft
61.3 tons
17 cm (6.7")
27.8 tons
SFB-H 42/17
91.5 cm (36")
91.5 cm (36")
2.5 cm (1")
20.6 kg (45 lbs)
35.8 cu ft
88 tons
17 cm (6.7")
45.8 tons
Product Type
18" x 18" or
22"x22" or
24"x24" or
31"x31" or
36"x36"
![[710003761] Ajax High Pressure Adjustable Regulator for air lifting bags and air guns](https://cdn.wfrfire.com/web/image/product.product/131/image_512/%5B710003761%5D%20Ajax%20High%20Pressure%20Adjustable%20Regulator%20for%20air%20lifting%20bags%20and%20air%20guns?unique=28815c4)
![[710004642] Inflation Hose for Air Lifting Bags - High-Pressure Sava (10m/33ft - 8 bar (116psi) - Yellow)](https://cdn.wfrfire.com/web/image/product.product/12289/image_512/%5B710004642%5D%20Inflation%20Hose%20for%20Air%20Lifting%20Bags%20-%20High-Pressure%20Sava%20%2810m-33ft%20-%208%20bar%20%28116psi%29%20-%20Yellow%29?unique=28815c4)

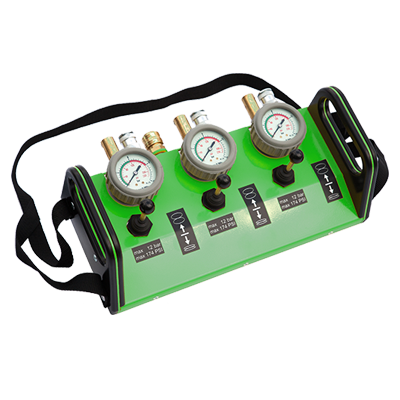

![[V-12842] Triple Deadman Controller (High-Pressure) (8 Bar (116 psi))](https://cdn.wfrfire.com/web/image/product.product/12842/image_512/%5BV-12842%5D%20Triple%20Deadman%20Controller%20%28High-Pressure%29%20%288%20Bar%20%28116%20psi%29%29?unique=28815c4)
