Frontier Self-Educting Master Stream Foam Nozzle 65mm (2.5") BAT (Other Threads Available) w/foam pickup tube
Frontier Selectable Flow Monitor Nozzle - 65mm (2.5")
ZN Deluge Nozzle
Frontier Self-Educting Master Stream Foam Nozzle 65mm (2.5") BAT (Other Threads Available) w/foam pickup tube
SKU:
https://www.wfrfire.com/shop/frontier-self-educting-master-stream-foam-nozzle-65mm-2-5-bat-other-threads-available-w-foam-pickup-tube-9518
https://www.wfrfire.com/web/image/product.template/9518/image_1920?unique=47da453
CND
1,799.16
1799.16
CAD
CND
1,799.16
CND
1.00
Not Available For Sale
Nozzle Configuration
350gpm @100psi
500gpm@100psi
750gpm@100psi
This combination does not exist.
Login for Price
Add to cart
Add to wishlist
Compare
Compare
Contact Us
Frontier
Nozzles/Monitors
Description
Specification
Documents

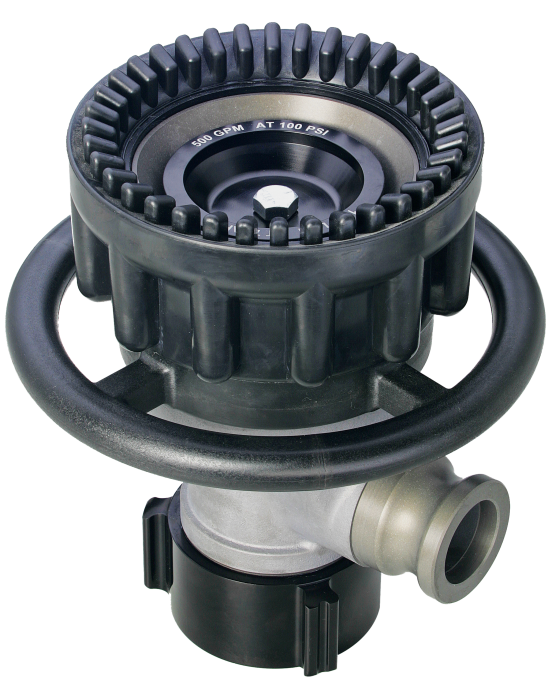

Self Educing Master Stream Nozzles
Build-in eductor can transform any monitor to a foam station
Designed to used with Class A or B foam, including AAAF or fluoroprotein
Include a set of calibrated foam orifice plates. The plates are easily interchangeable to adjust foam proportioning
Nozzle pattern is adjustable from straight stream to variable fog angles
Baffle is easily removed for flushing debris
Simple design and rugged construction ensure low maintenance and long service life
Include an industrial grade UV-resistant pick-up hose with fast connection fitting
Length of Pick-up hose is 118"(3m) and the hose diameter is 1.5"(38mm).
Lightweight hardcoat anodized aluminum
For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need
Flow Control Style
One single gallonage flow, and does not change with pattern
Flow Settings at 100 PSI (7 Bar)
350 GPM (1325 LPM) /
500 GPM (1900 LPM)
/
750 GPM (2900 LPM)
Inlet Size
2.5"(65mm)
Induction Rates
0.5%, 1%, 3%, 6%
Material
Lightweight alloy
Weight
2.86kg
Length
230mm
Nozzle Configuration
350gpm @100psi
or
500gpm@100psi
or
750gpm@100psi
Drawing-625.pdf
Download
