Dry Hydrant Elbow

Elbow (Male or Female)

Solid Male Dry Hydrant Elbow
- Available in 4" through 6" sizes, in all threads, and in 45° or 90°. "O" ring seal assures vacuum tight joint. Suction strainer with removable snap ring for easy clean out. Male options come with complete with Cap and chain

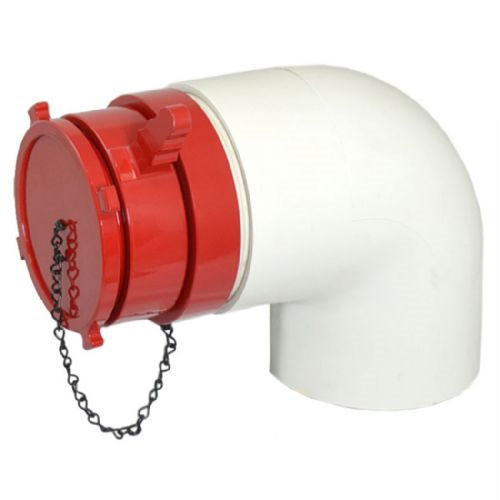

Long Handled Swivel Female Dry Hydrant Adapter
- Available in 4" through 6" sizes and in 45° or 90°. "O" ring seal assures vacuum tight joint. Suction strainer with removable snap ring. All threads available on swivel except NPT. Eliminates the need for double female hook-up. NOTE: The 6" Female Swivel 90° is the most common configuration. Female option comes with plug and chain and is always a long handle swivel.

Material: Light-weight 6061-T6 Aluminum Alloy on connectors, Schedule 40 Standard PVC for the piping.

NFPA Requirements: All parts meet or exceed.

Product Parts

45 degree, 114 (4.5") Female Swivel NHT or 45 degree, 150 (6") Female Swivel NHT or 90 degree, 100 (4") Female Swivel NHT or 90 degree, 114 (4.5") Female Swivel NHT or 90 degree, 125 (5") Female Swivel NHT or 90 degree, 150 (6") Female Swivel NHT or 90 degree, 100 (4") Storz Swivel or 90 degree, 125 (5") Storz Swivel or 90 degree, 150 (6") Male NHT or 90 degree, 100mm (4") Male NHT or 180 degree, 150mm (6") NHT F swivel or 45 degree, 150mm (6") Storz swivel or 90 degree, 150mm (6") Storz swivel or 45 degree, 100mm (4") Storz swivel or 90 degree, 100 (4") Male Camlock w/cap

Dry Hydrant Elbow

CND 1,187.03 1187.03 CAD CND 1,187.03

CND 0.00
