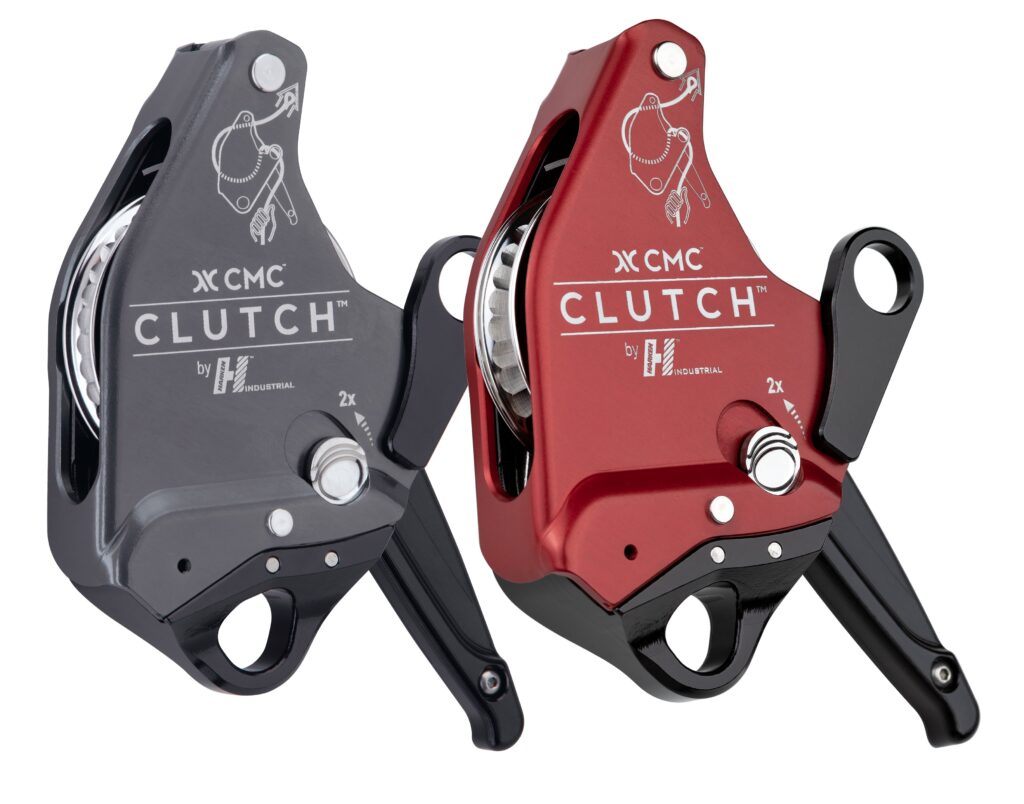

CMC Harkens Clutch

More is Possible
Introducing the all-new CLUTCH, the latest evolution in rescue and rope access hardware that enables the technical rope professional to do more with less. This multi-purpose device was designed and engineered in collaboration by two companies with a collective 90 year history in rope management under heavy loads: CMC, a company with roots in rescue and rope access, and Harken Industrial, a manufacturing company with roots in high performance sailing.

Suited to a multitude of rigging operations, the CLUTCH delivers efficient operation, ease of use, and optimal control. It moves seamlessly between anchor-based systems and personal use, offering unmatched versatility for the rope technician. With the CLUTCH, more is possible.

Features:

• Single wearable tool for efficient hauling, controlled lowering, smooth personal descent, easy ascending, belaying, and Twin Tension Rope Systems.
• Delivers up to 38% higher efficiency in hauling and ascending than a cam-style device: reducing changeovers.
• Moves seamlessly between anchor-based systems and personal use, doing the job of multiple pieces of equipment.
• Combines the key features of load management devices and personal descenders: reducing equipment training and cost.
• Instantly transitions between hauling and lowering or ascent and descent without having to transfer the load.
• Allows main and belay lines to be twin-tensioned in mirrored or nested configurations (Double CLUTCH Technique).
• Replaces 8 pieces of traditional equipment: pulley, rescue rack, anchor plate, load release strap, prusik cord, and 3 carabiners.
• The 11 mm CLUTCH and CMC’s G11™ Lifeline can be used together to build NFPA G-Rated systems using 11mm rope, saving space and reducing weight.
• The 11 mm CLUTCH is compatible with 10.5 – 11 mm rope and certified to NFPA 1983 General Use, ANSI, and EN standards. It’s the only device for 10.5 – 11 mm rope that carries all these certifications.
• The 13 mm CLUTCH is compatible with 12.5 – 13 mm rope and certified to NFPA 1983 General Use and ANSI standards.
  Patented. Made in the USA.

Components:

• Stainless steel ratcheting and rotating sheave provides efficient and audible auto-locking progress capture.
• Rope loading/unloading is secured with an innovative double-latched side plate that is independent of the device‘s attachment point.
• Anti-Panic brake and force limiting features ensure operational safety and overload protection.
• Machined aluminum chassis clad with stainless steel wear guards ensures light weight and durability.
• Integrated becket allows for the direct connection of mechanical advantage components.
• Control handle has large sweet spot for smooth, progressive lowering and descent control.
• Included screw can be installed in the side plate to create closed rope systems for rapid deployment.

Certifications:

• 11 mm Gray CLUTCH:
  NFPA 1983 (2017 ED)
  GENERAL USE (G) MBS 40kN (8,992 Ibf) PULLEY
  GENERAL USE (G), DESCENT CONTROL, ø 10.5 – 11 mm
  GENERAL USE (G), BELAY DEVICE, ø 10.5 – 11 mm
  ANSI/ASSE
  Z359.4-2013
  CE
  EN 12841: 2006/C
  EN 341: 2011/2A
  EN 15151-1: 2012/8



• 13 mm Red CLUTCH:
  NFPA 1983 (2017 ED)
  GENERAL USE (G) MBS 40kN (8,992 Ibf) PULLEY
  GENERAL USE (G), DESCENT CONTROL, ø 12.5 – 13 mm
  GENERAL USE (G), BELAY DEVICE, ø 12.5 – 13 mm
  ANSI/ASSE
  Z359.4-2013


​
