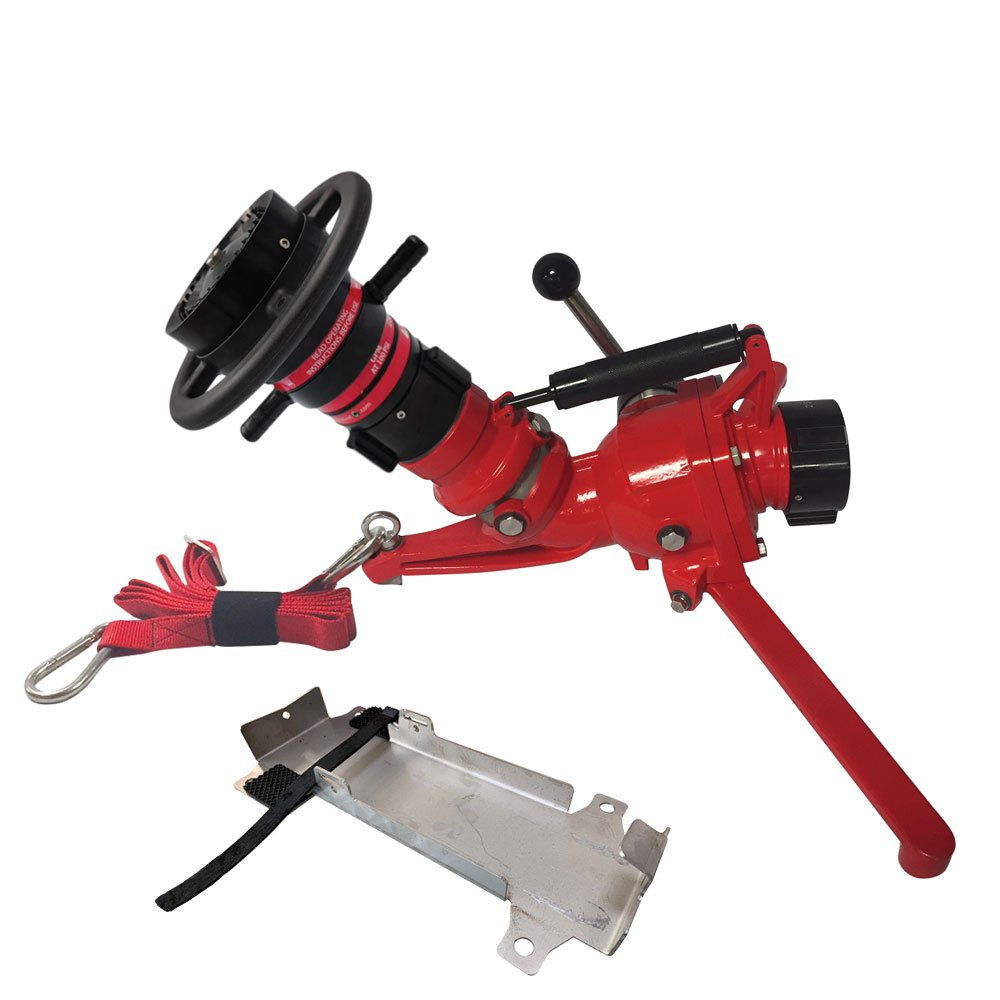

Chinook Frontier Portable Monitor Package

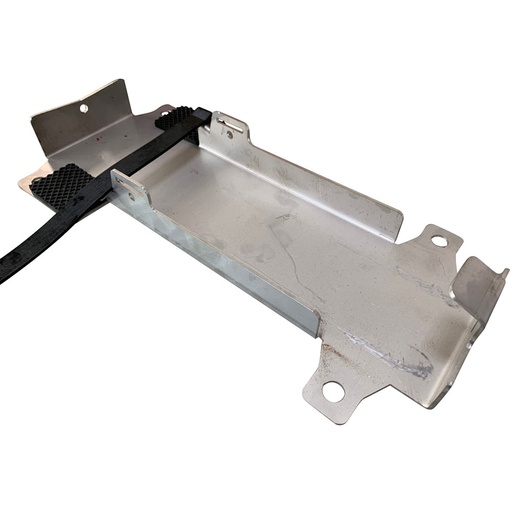

Package also comes with Mounting bracket

Product Configuration
- w/ Selectable Nozzle
- w/ Automatic Nozzle
- w/ Quad Stacked Tips
Thread Type
- BAT
- CSA
- NHT
- WCT

This combination does not exist.

Flow up to 500 GPM (1,900 LPM)
Movement range: 20° horizontal travel either side & 20-60° vertical travel (manned).
Highly maneuverable
Simple & quick attack operation. Operates like a handline while delivering higher volumes of water.
Compact size & light weight
Aluminum alloy body
Epoxy coating exterior.
Low-profile design for stable operation.
Carbide tip spikes on the base provide long term wear resistance & ground stability.
Large handle for easy carry transport
Ball shut-off locking handle
A comprehensive range of water and self educting foam master nozzles are available for any application.
Inlet: 65mm (2.5") BAT & WCT thread (other threads available upon request)
Discharge Outlet: 65mm (2.5") BAT
Dimensions:
- Stowed: 16" L x 8" W x 9" H
- Deployed: 17" L x 22.5" W x 9" H
Weight: 15 lbs (6.7 kg)

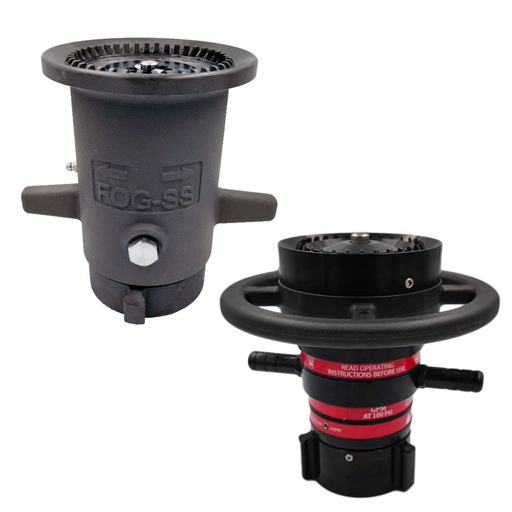

Frontier Selectable Nozzle:
- 300-400-500gpm

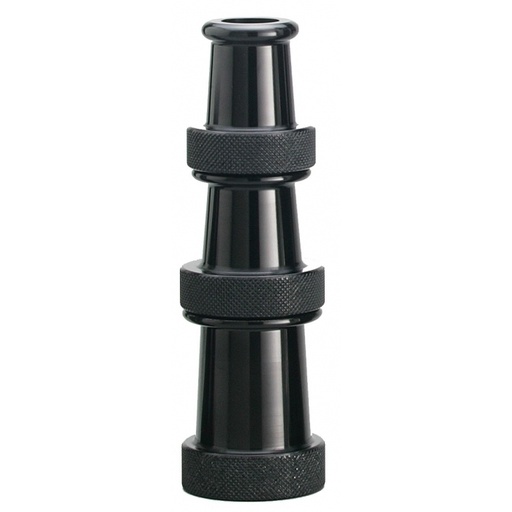

Frontier Triple Stacked Tips:
- 25mm (1"), 29mm (1-1/8"), and 32mm (1-1/4") tips

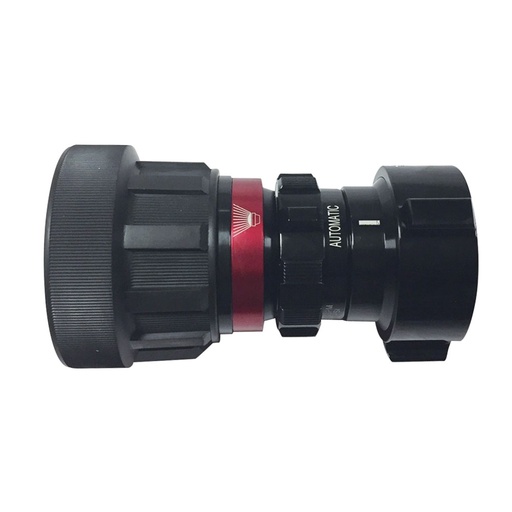

Frontier Automatic Nozzle:
- 50gpm to 350gpm

Other nozzle options available upon request.
