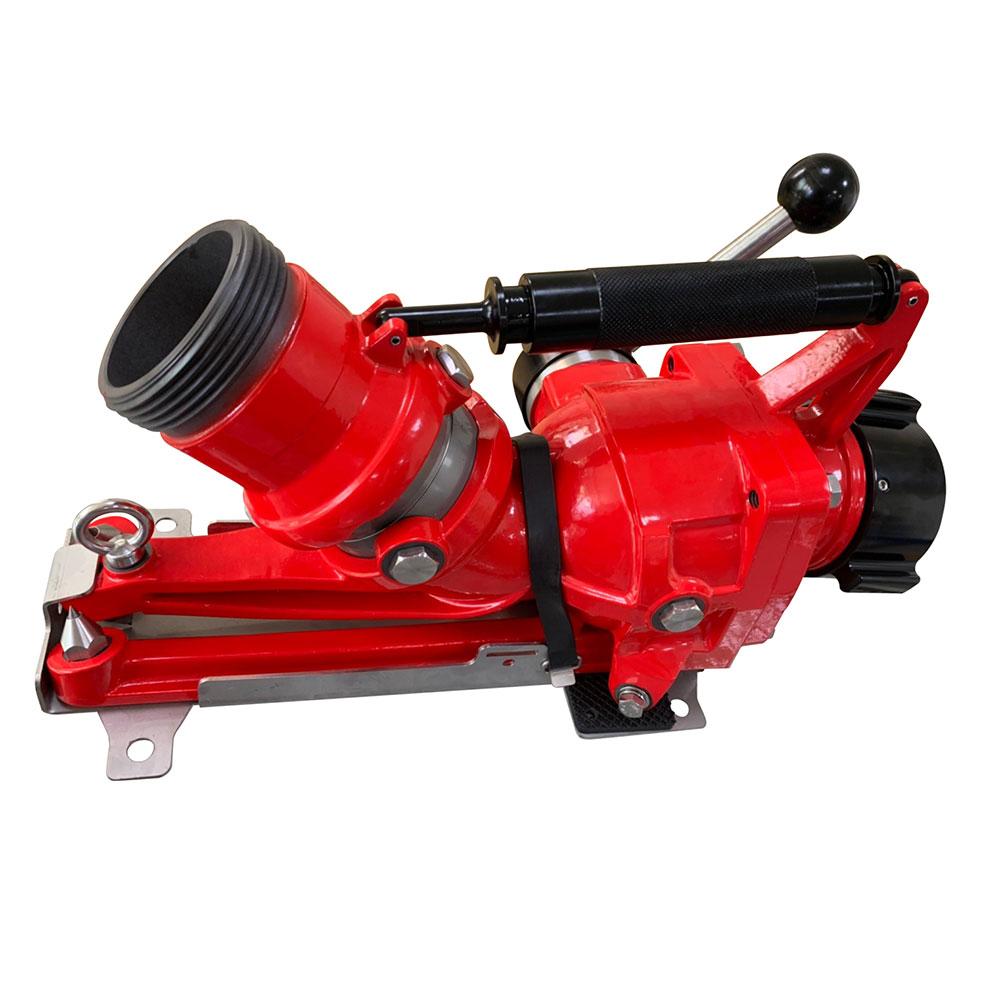

The Chinook Frontier Portable Monitor is a compact, high-performance solution for rapid, high-volume water delivery. Built for durability and ease of deployment, this monitor is designed to deliver exceptional flow control, stability, and maneuverability in demanding field conditions.
Engineered for portability, the Frontier Monitor sets up quickly with a low-profile base and integrated carrying handle. Its adjustable stream direction and flow range make it ideal for tactical operations where flexibility and performance are critical.
Note: This product includes the monitor only. No nozzle or accessories included.
Key Features:
Flow up to 500 GPM (1,900 LPM)
Movement range: 20° horizontal travel on either side & 20-60° vertical travel (manned).
Highly maneuverable
Simple & quick attack operation. Operates like a handline while delivering higher volumes of water.
Compact size & light weight
Aluminum alloy body
Epoxy coating exterior.
Low-profile design for stable operation.
Carbide tip spikes on the base provide long-term wear resistance & ground stability.
Large handle for easy carry transport
Ball shut-off locking handle
A comprehensive range of water and self-educting foam master nozzles is available for any application.
Inlet: 65mm (2.5") BAT & WCT thread (other threads available upon request)
Discharge Outlet: 65mm (2.5") BAT
Dimensions:
Stowed: 16" L x 8" W x 9" H
Deployed: 17" L x 22.5" W x 9" H
Weight: 15 lbs (6.7 kg)
Nozzle Options:
Frontier Selectable Nozzle:
300-400-500gpm
Frontier Triple Stacked Tips:
25mm (1"), 29mm (1-1/8"), and 32mm (1-1/4") tips
Frontier Automatic Nozzle:
50gpm to 350gpm
Other nozzle options available upon request.
Thread Type
65mm (2.5") BAT or
65mm (2.5") CSA or
65mm (2.5") NHT or
65mm (2.5") WCT
