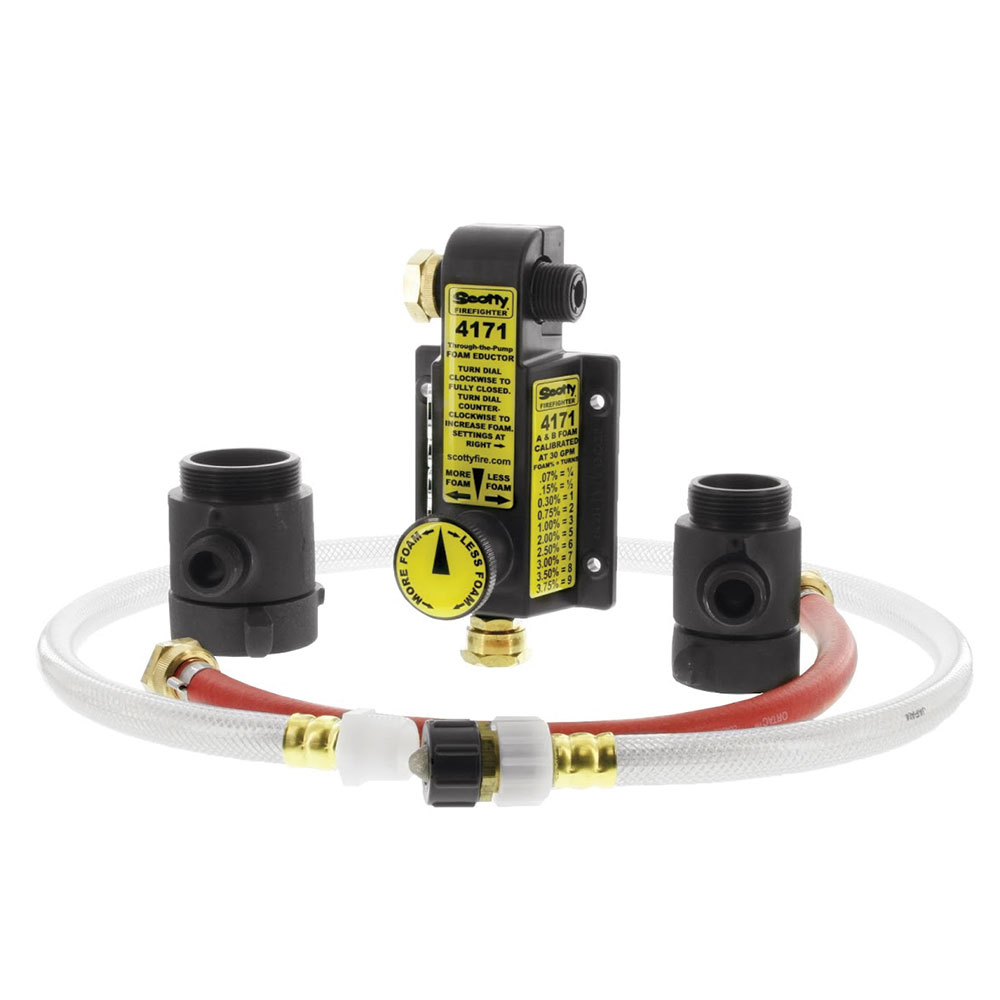

Enhance your fire suppression capabilities with the Around-The-Pump Foam Eductor/Mixer, a reliable and efficient solution for delivering accurate foam concentrations directly through your fire pump system. Designed for versatility and ease of installation, this eductor allows you to introduce foam concentrate into the water stream without the need for complex modifications.
Key Features of the "Around-The-Pump" Foam Eductor/Mixer:
Versatile Installation: Incorporates foam concentrate directly into the water stream without complex modifications.
Flow Rate and Pressure: Works at flow rates from 15 to 125 GPM and can handle a maximum operating pressure of 300 PSI.
Foam Concentration: Capable of educting foam concentrates at percentages ranging from 0% to 3.75%.
Components Included: The complete kit includes an 18" pressure hose, a 48” foam pickup hose, and cast aluminum connecting tees.
Simple Installation Process:
Gather Your Tools and Components:
Ensure you have the complete kit: eductor, hoses, and connecting tees.
Have basic tools ready, such as wrenches or pliers.
Prepare the Pump System:
Turn off and depressurize the pump system before starting the installation.
Locate the suction and discharge sides of your pump.
Attach the Connecting Tees:
Install the 1.5" and 2" cast aluminum connecting tees to the appropriate parts of the pump. Ensure they are tightly secured to prevent leaks.
Connect the Hoses:
Attach the 18" pressure hose to the discharge side of the pump via the connecting tee.
Connect the 48” foam pickup hose to the suction side, ensuring it is securely fastened.
Install the Eductor:
Position the eductor between the hoses, ensuring it is properly aligned for optimal foam introduction.
Check for Leaks and Test:
Slowly turn the pump system back on and check for any leaks around the connections.
Test the system by running water through it and gradually introducing the foam concentrate to verify proper mixing and flow.
Actionables:
Double-Check Connections: Tighten all connections to avoid leaks.
Test Regularly: Periodically test the system to ensure it's functioning correctly.
Maintenance: Regularly inspect hoses and fittings for wear and tear.
Product Option
Complete Kit (eductor, hoses, tees) or
Eductor and Hoses only or
Eductor Only
