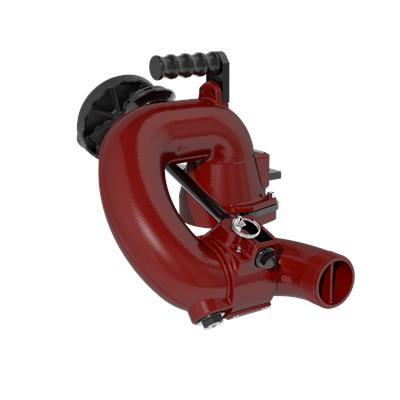

TFT Crossfire Portable Monitor Top Only 1250gpm, 65mm Male NHT Outlet
Nozzles/Monitors
Features
can be connected to either a portable base or a truck with the adapters on page 72 or a TFT Extend-A-Gun with XL outlet on page 137. The connection is easy, positive, and visually verified. When in use, the release is "locked out" by water pressure. The waterway is a large 3.25" (83mm) which lets the CROSSFIRE deliver up to 1250 gpm (4750 l/min) with low friction loss. Horizontal rotation is securely locked with a simple lever, and position can be visually confirmed. Only seven (7) turns of the handwheel change the discharge elbow from vertical to the stop elevation. Includes highly visible pressure gauge and built-in automatic drain valve. Standard outlet thread is male 2.5" NH (65mm).
Specifications
| Coupling Size Side A | 2.5" (65 mm) |
| Coupling Size Side B | 2.5" (65 mm) |
| Coupling Style Side B | Male Threads |
| Finish | Fire Engine Red |
| Horizontal Control | Lock Lever |
| Horizontal Movementdegrees | Continuous 360 |
| Inlet | Quick Connect Female |
| Max Flow | 1,250 gpm (4,500 l/min) |
| Operation Energy Source | Manual |
| Oscillation | No |
| Outlet | 2.5" (65 mm) |
| Package | No |
| Safety Shutoff | No |
| Valve Design | No Valve |
| Vertical Control | 6" Handwheel |
| Vertical Movementdegrees | 90 to 90 |
| Weight | 17 |
| Safety Inlet | No |
