TFT's

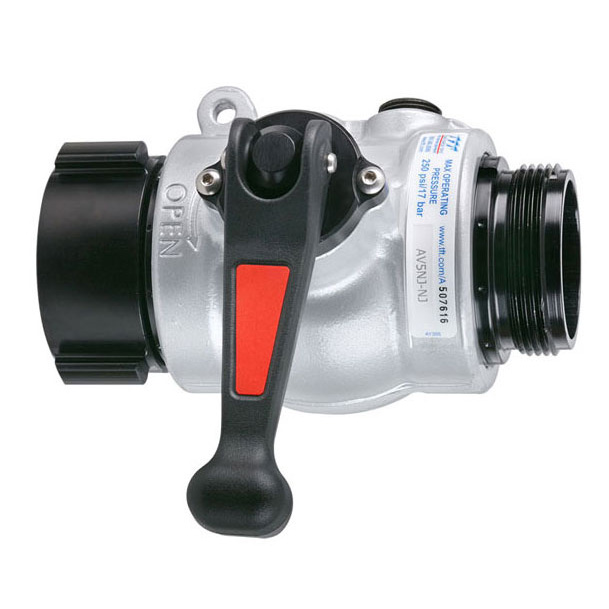

2.5" Quarter Turn Hydrant Valve is a lightweight valve with a full 2.5"
waterway. 250 psi (17 bar) operating pressure from either side of
valve. Field replaceable valve seat. Quarter turn valve handle has low
force to move valve even under pressure. Automatic vale lock keeps valve
position while flowing at partial openings. all the components on the
wet side of the valve are made of anodized aluminum for additional
corrosion protection. Pipe threaded ports for pressure gauge or bleed
valve. Hole for cap tether attachment. Aluminum casting is hardcoat
anodized and silver TFT-powder coat finish inside and out for maximum
corrosion protection.
Super tough nylon folding handle
Full fulow 2/5" (65mm) waterway provides maximum flow with minimal loss
2.5" (65mm) female swivel rocker lug coupling is standard
Weighs 5.8lbs. (2.6kg)
8.9"h x 5.7w" x 8.4"l (23cm x 15cm x 21cm)
Thread Type
BAT - Hydrant thread or
WCT - Hydrant thread
TFT Quarter Turn Hydrant Gate Valve
